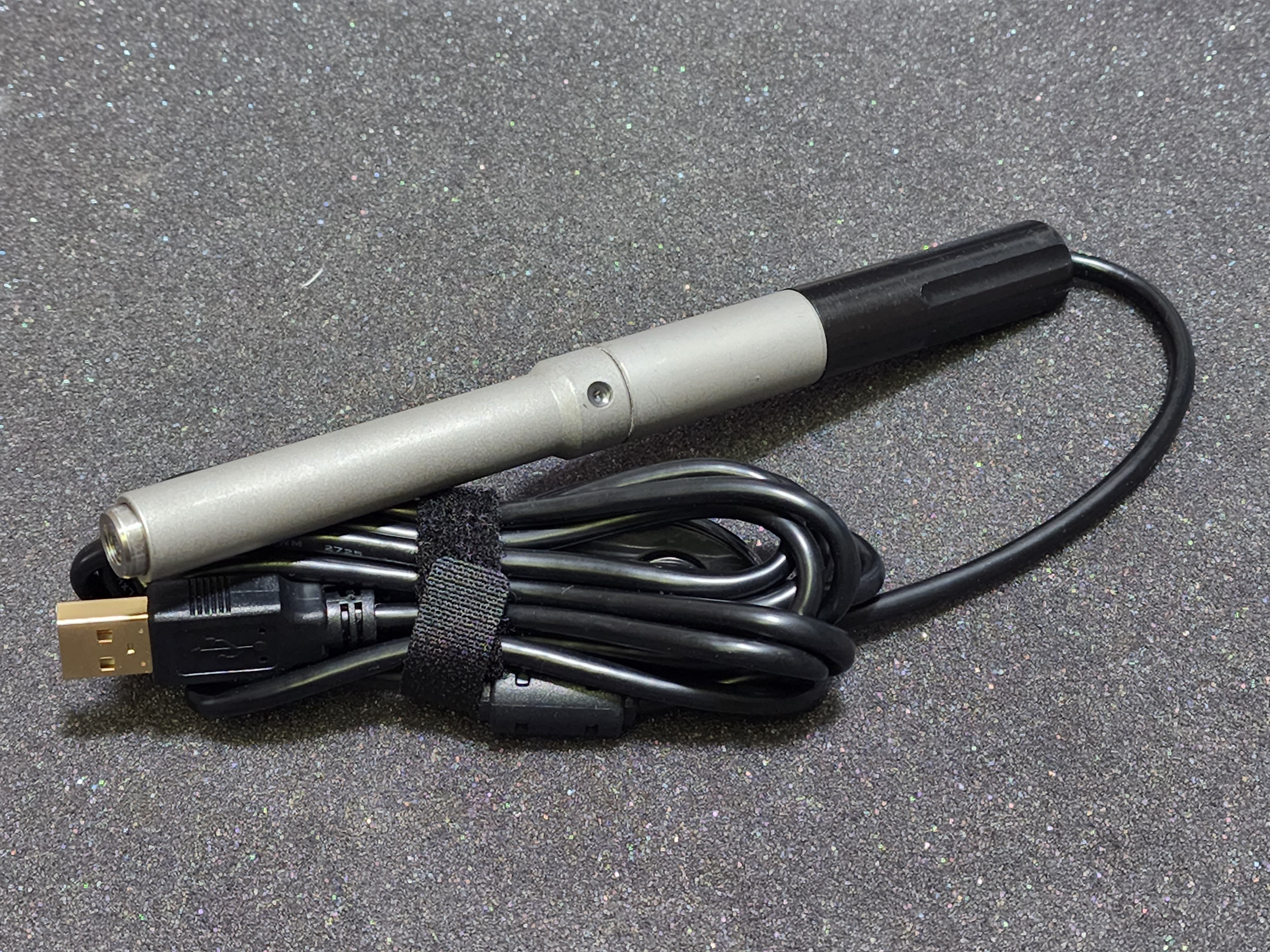

.500" Diameter Swiss Main Alignment Camera

$1,700

Swiss Guide bushing camera to fit 12mm and larger machines.

The one that started it all
.500" Main body diameter
6.4" Over All Length
Approximately .800" of Focus adjustment.
For inch bar stock
Clamping zone: .500" diameter X 2.500" long

Details

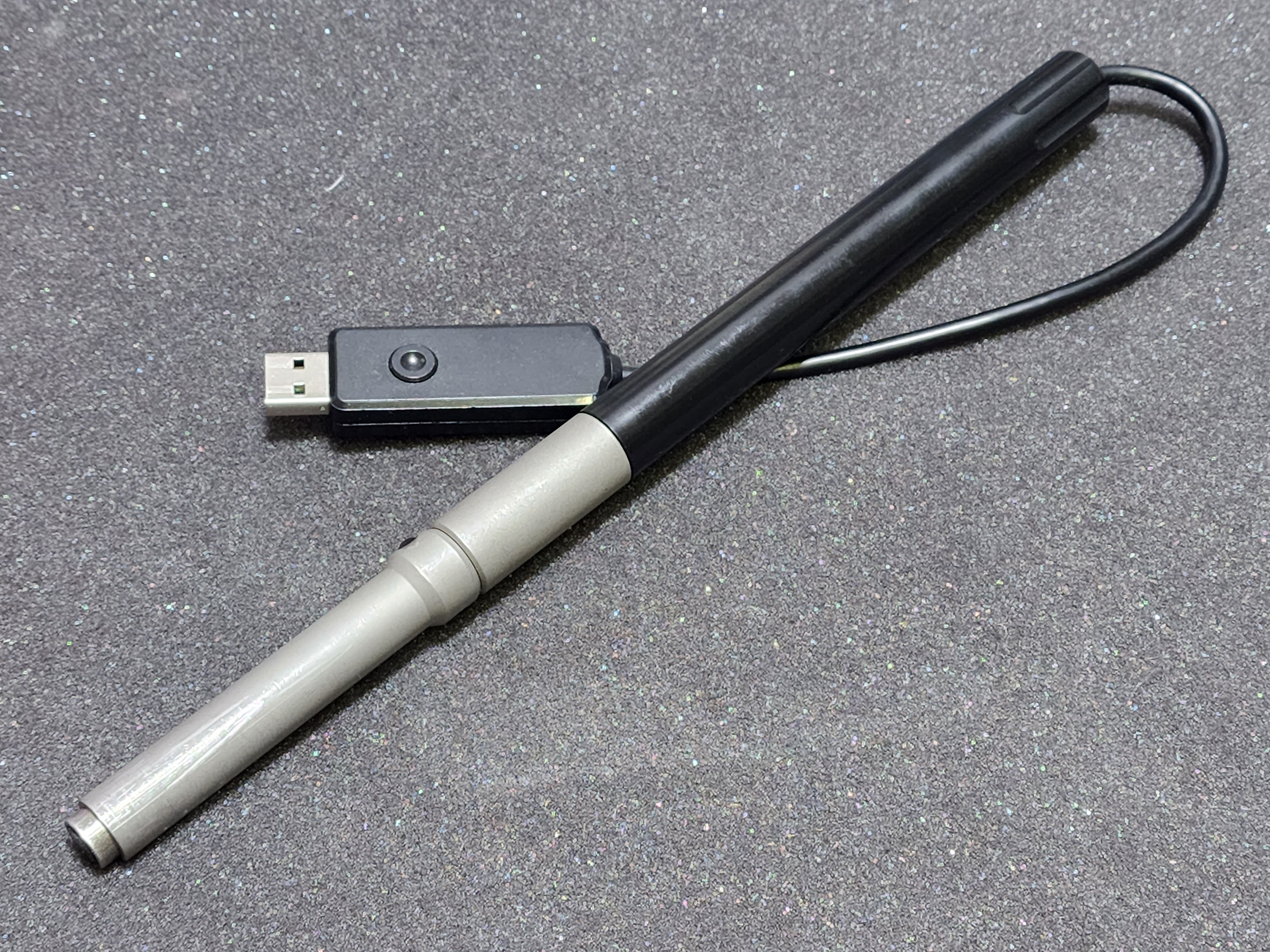

.500" Diameter Swiss Main Alignment Camera With Extended Knob

$1,700

Swiss Guide bushing camera to fit 32mm and larger machines.

Best used in larger machines with a long reach or massive Guide Bushing Assembly
.500" Main body diameter
9.6" Over All Length
Extended focus knob
Approximately .800" of Focus adjustment.
Clamping zone: .500" diameter X 2.500" long

Details

12mm (.472") Swiss Main Alignment Camera

$1,700

Swiss Guide bushing camera to fit 12mm and larger machines.

For those Customers that run Metric bar stock
12mm Main body diameter
163mm Over All Length
Approximately 200mm of Focus adjustment.
Clamping zone: 12mm diameter X 63.5mm long

Details

12mm (.472") Swiss Main Alignment Camera with Extended Knob

$1,700

Swiss Guide bushing camera to fit 32mm and larger machines.

Best used in larger machines with a long reach or massive Guide Bushing Assembly
12mm Main body diameter
243mm Over All Length
Extended focus knob
Approximately 200mm of Focus adjustment
Clamping zone: 12mm diameter X 63.5mm long

Details

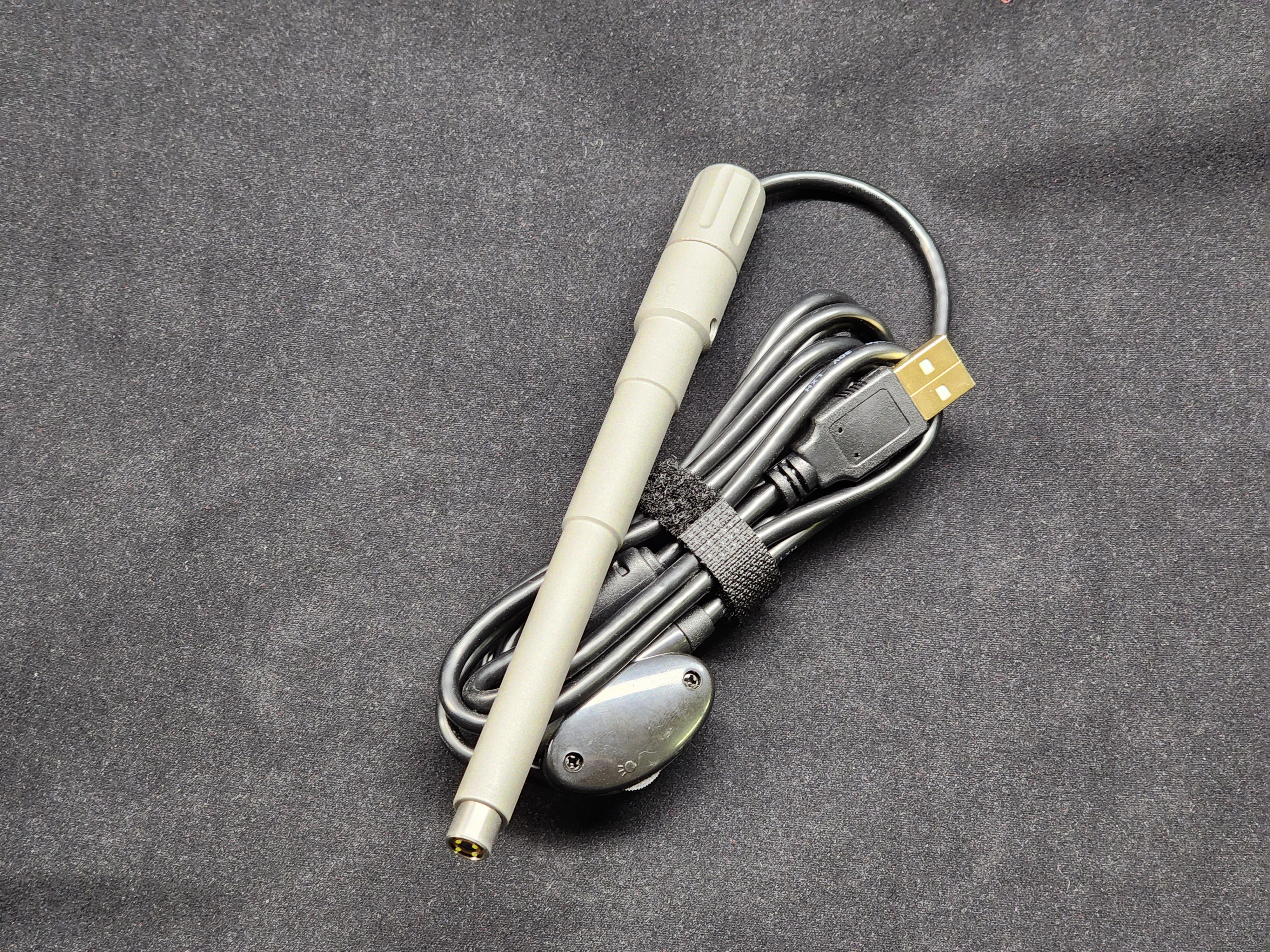

10mm (.394") Swiss Main Alignment Camera

$1,700

Swiss Guide bushing camera to fit 10mm and larger machines.

For those Customers that run Metric bar stock
10mm Main body diameter
165mm Over All Length
Approximately 20mm of Focus adjustment
Clamping zone: 10mm diameter X 155mm long

Details

.500" Diameter Universal Alignment Camera

$1,200

Universal camera that can clamp on .500 or larger diameters.

Used in milling and sub spindles, where getting a cord through the spindle is not possible.
.500" Main body diameter
2.0" Over All Length
90 Degree cord
Clamping zone: .500" diameter X 1.5" long. Note: Will not withstand hydraulic chuck clamping forces, use a clamping sleeve

Details

12mm (.472") Universal Alignment Camera

$1,200

Universal Camera to fit machinery that can clamp on 12mm or larger diameters.

Used in milling and sub spindles, where getting a cord through the spindle is not possible
12mm Main body diameter
500mm Over All Length
Clamping zone: 12mm diameter X 38mm long. Note: Will not withstand hydraulic chuck clamping forces, use a clamping sleeve

Details

10mm (.394") Universal Alignment Camera

$1,200

Universal Camera to fit machinery that can clamp on 10mm or larger diameters.

Used in milling and sub spindles, where getting a cord through the spindle is not possible
10mm Main body diameter
90 Degree cord
Clamping zone: .394" (10mm) diameter X 1.5" long. Note: Will not withstand hydraulic chuck clamping forces, use a clamping sleeve

Details

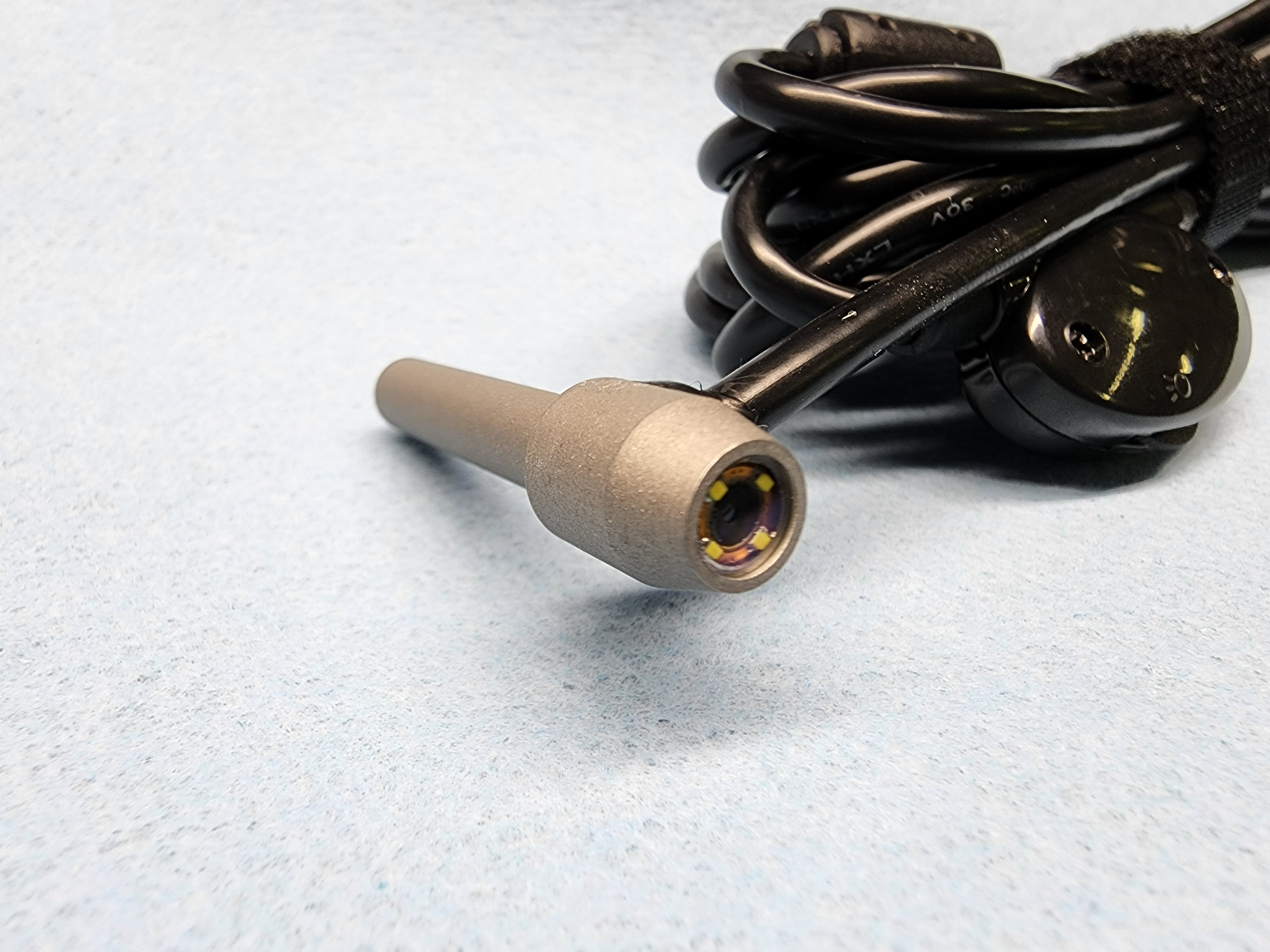

.250" (6.4mm) Universal Alignment Camera

$1,200

Universal Camera to fit machinery that can clamp on 6.4mm or larger diameters.

Used in milling and sub spindles, where getting a cord through the spindle is not possible
.250" (6.4mm) Main body diameter
90 Degree cord
Clamping zone: .250" (6.4mm) diameter X 1.5" long. Note: Will not withstand hydraulic chuck clamping forces, use a clamping sleeve

Details

PD4 Guide Bushing Main Spindle Camera

$2,000

PD4 guide bushing style camera for Citizen R04 swiss.

Purpose built to replace the guide bushing on a Citizen R04 machine
Machined in the shape of PD4 Guide Bushing
PD4 Main body diameter
5.8mm Over All Length
Approximately 10mm of Focus adjustment.

Details

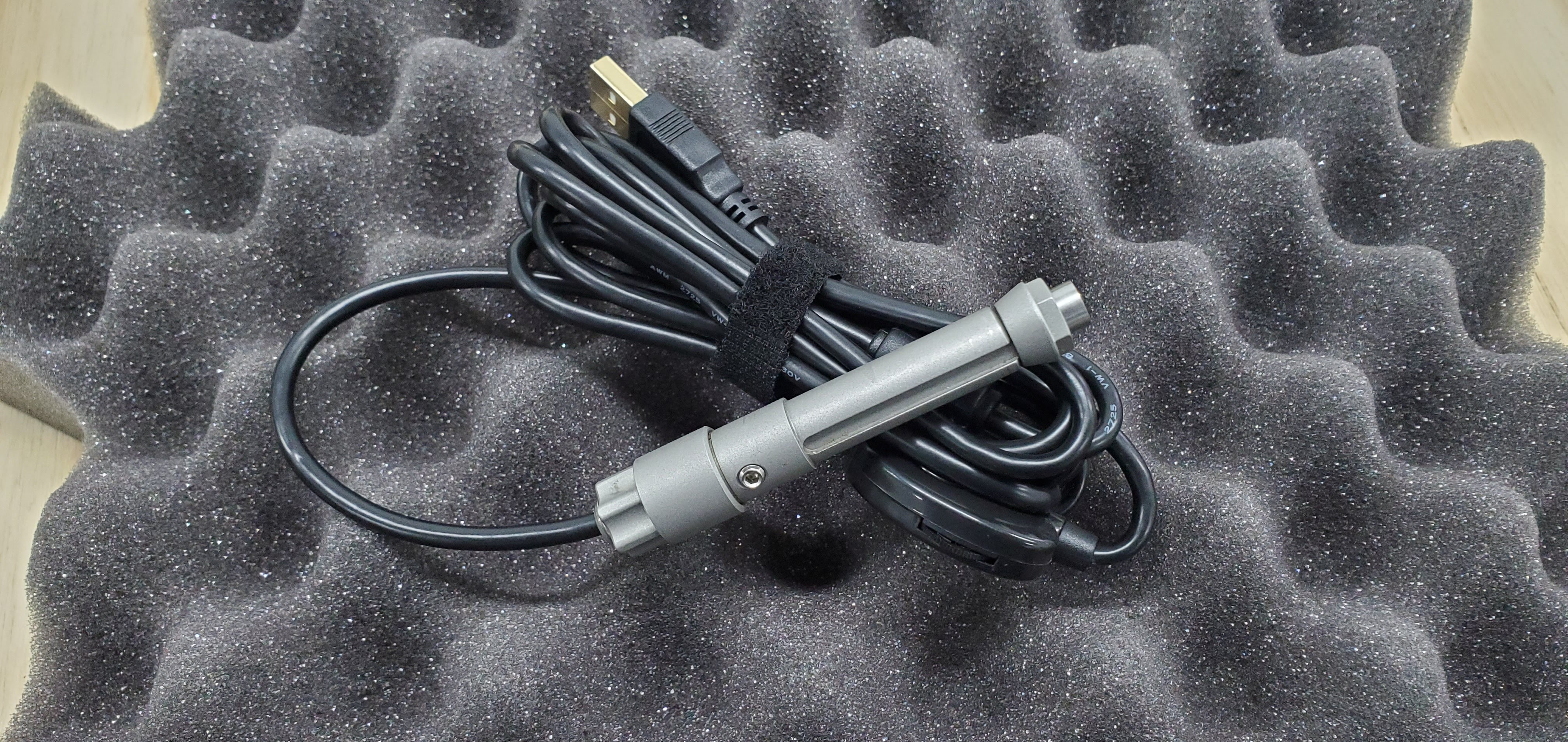

Citizen R07 (TD7) Main Spindle Camera

$2,200

TD7 guide bushing style camera for Citizen R07 swiss.

TD7 Guide Bushing
Clamping zone: Direct fit in a TD7 guide bushing

Details
