10mm (.394") Universal Alignment Camera
Part Number 400-1007
$1,680
Typically ships within 5 business days
Spindle:
Fit:
Extended Knob:
Product Description

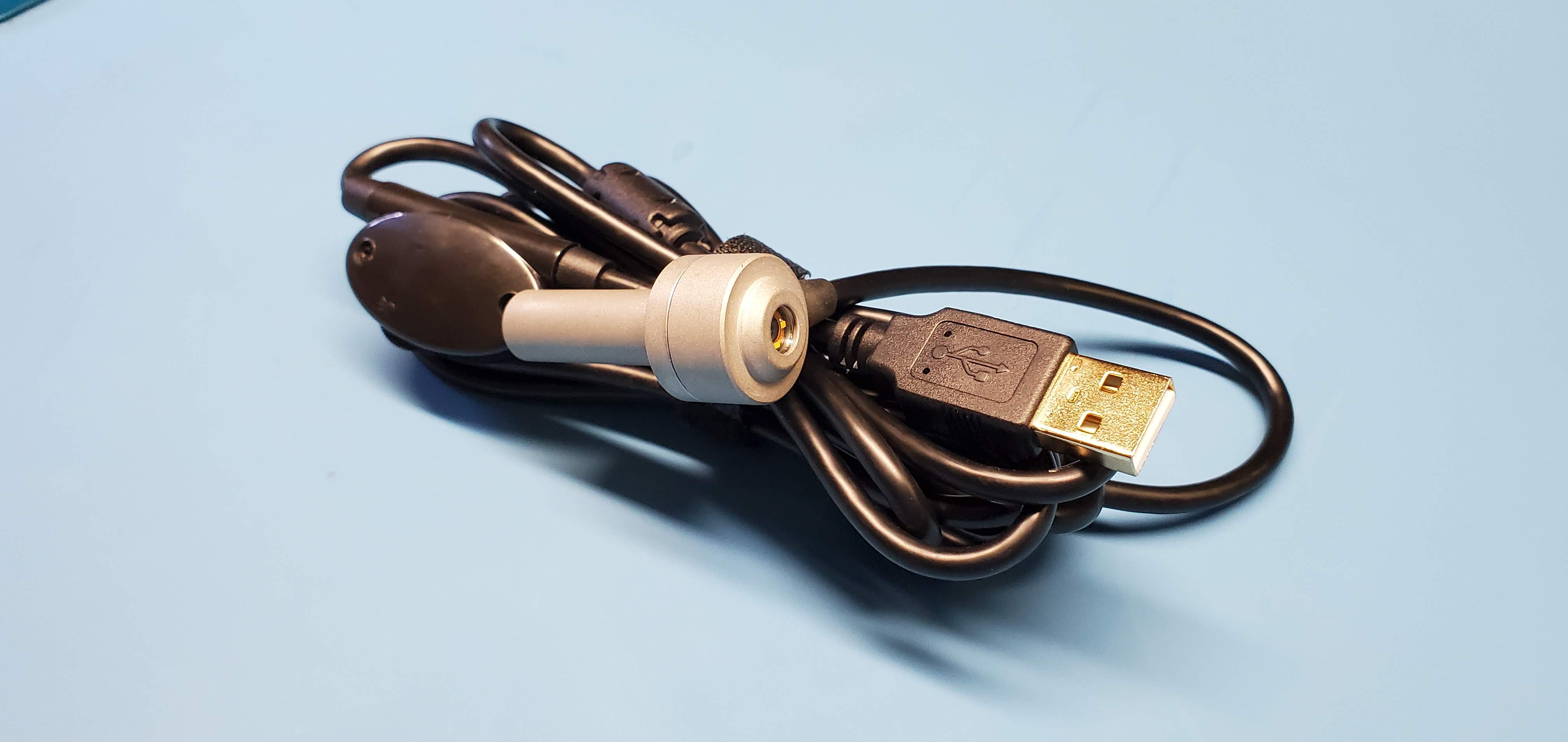

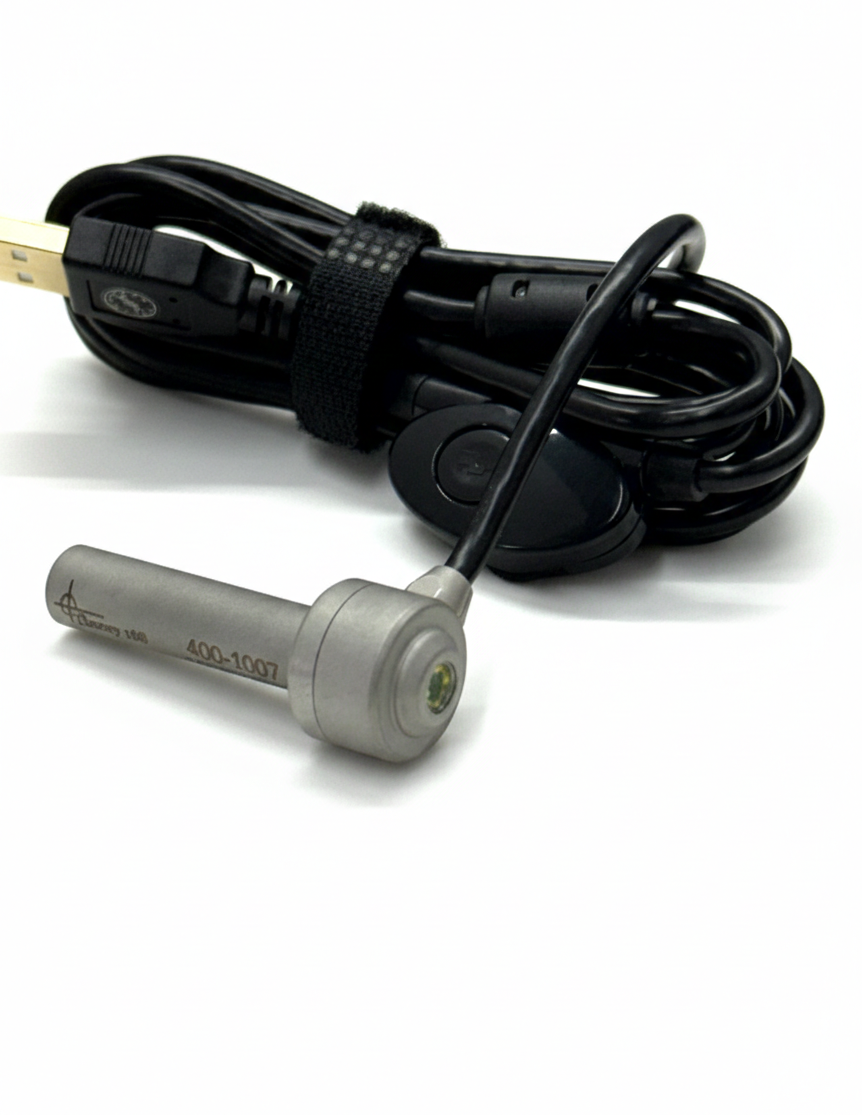

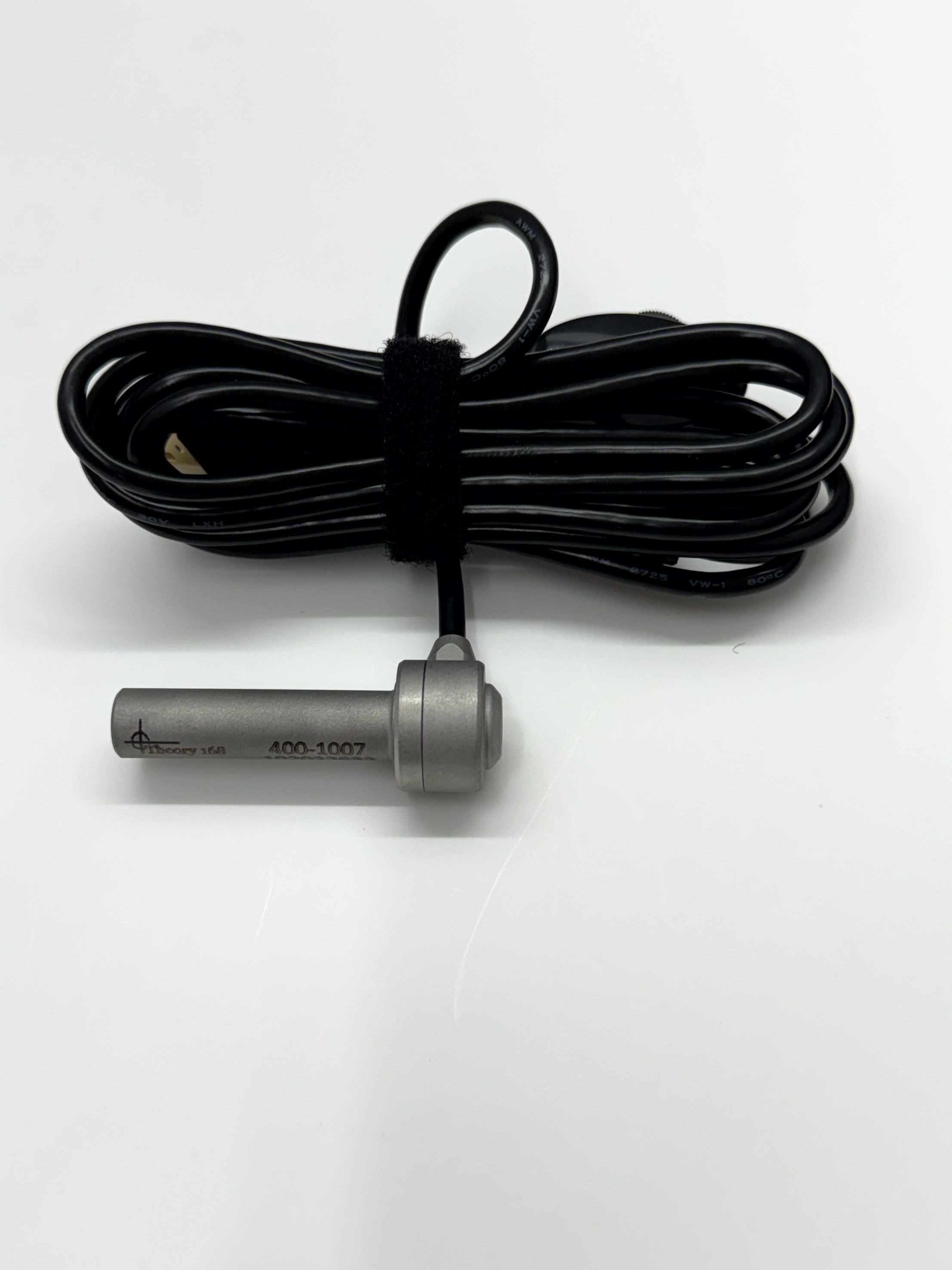

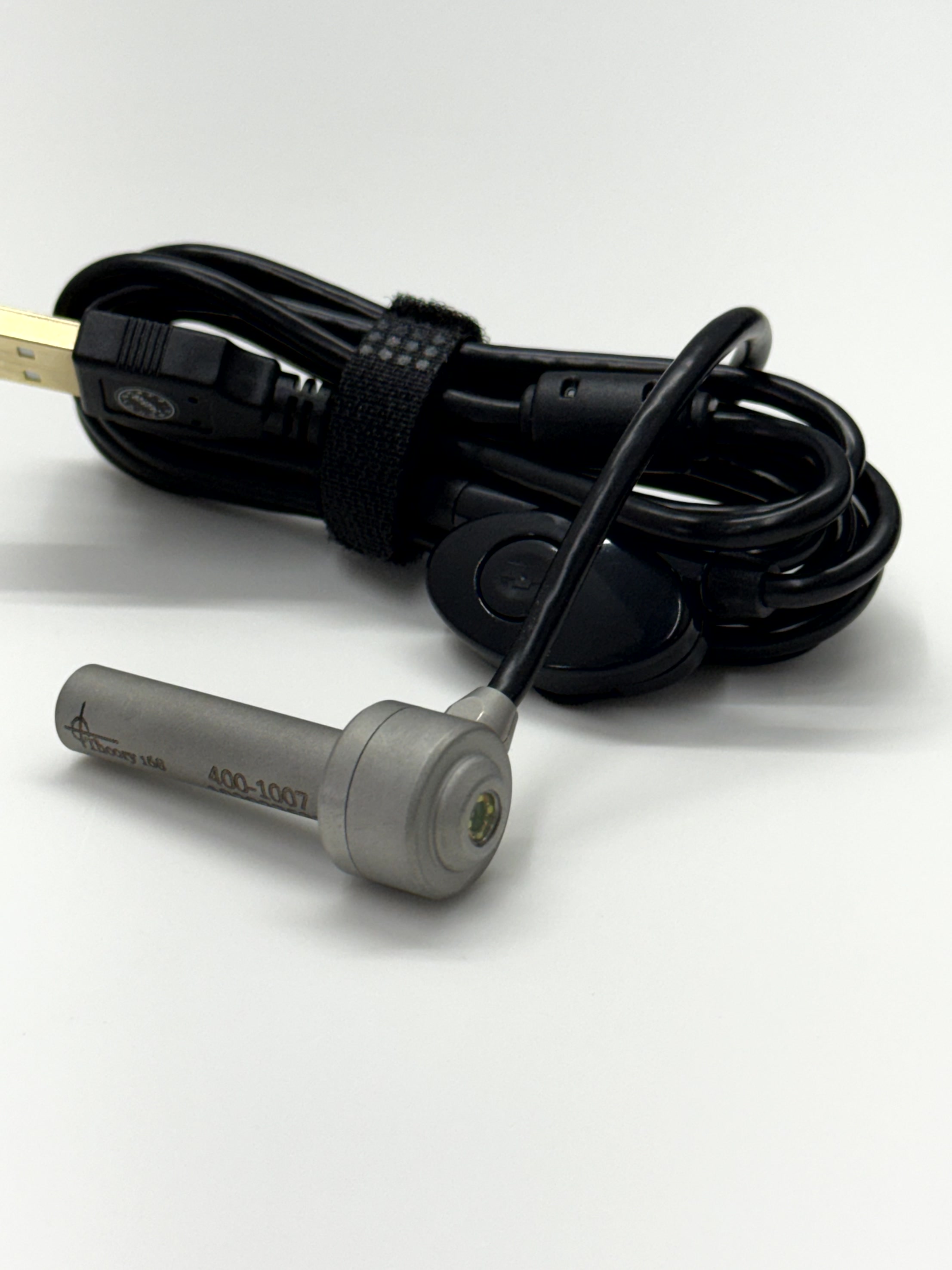

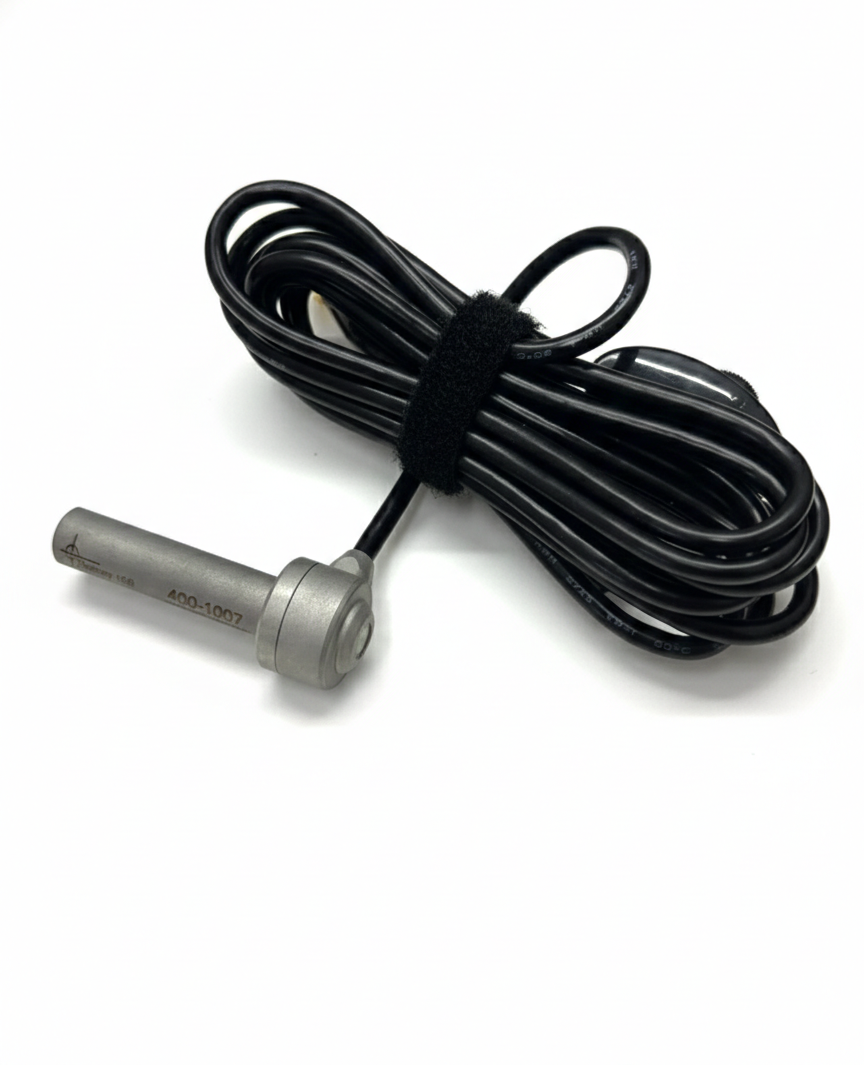

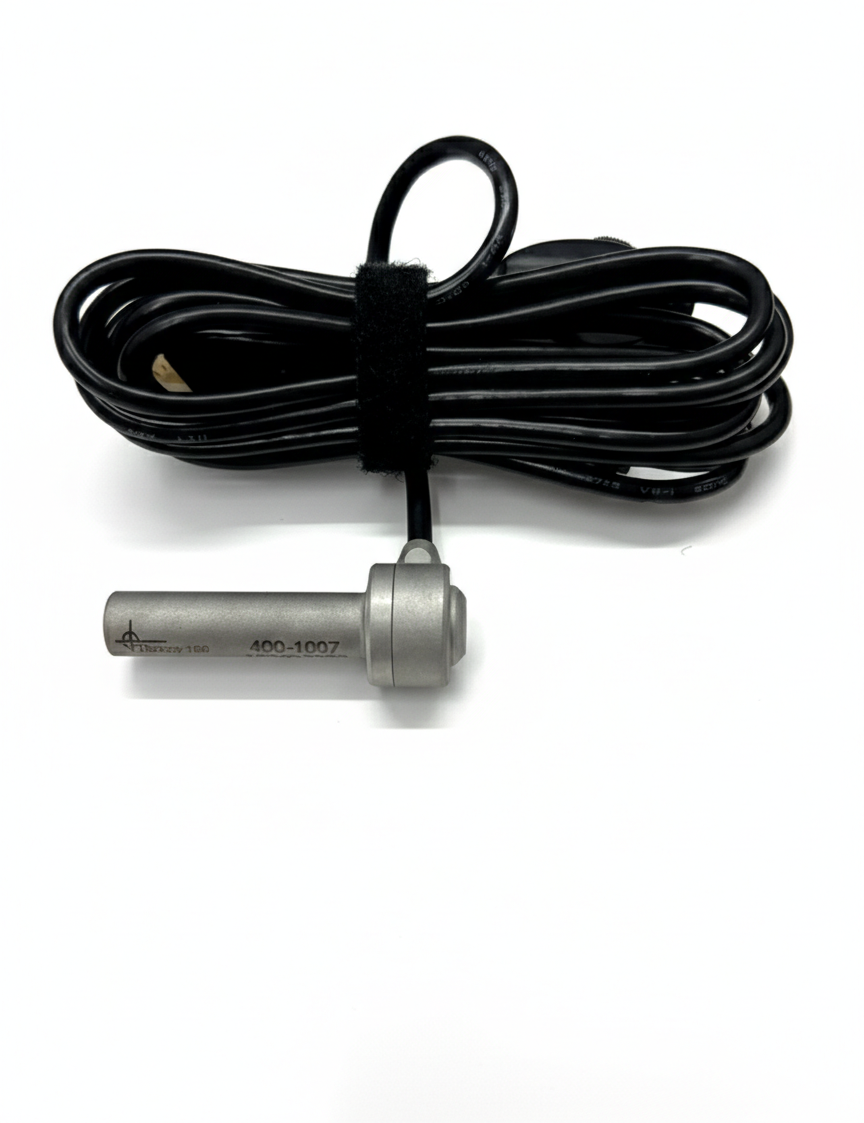

A compact universal alignment camera designed for machinery that clamps onto 10mm or larger diameters. Perfect for smaller metric machines, this 10mm camera features a 90-degree cord design for sub-spindles and milling applications where threading a cord through the spindle is not possible. With fixed focus and optional Stage 2 zoom, it provides precise alignment in compact spaces.
What's Included
- 10mm diameter camera body
- Fixed focus optics
- 90-degree cord orientation
- Stage 1 zoom (Stage 2 available by request)
- On-cord brightness control
- USB connection cable
Why Choose This Product
- Compact size for smaller metric machines
- Ideal for sub-spindles and milling operations
- 90-degree cord prevents interference
- Works where spindle cord threading is impossible
- Clamps on 10mm and larger diameters
- Note: Use clamping sleeve for hydraulic chuck applications
Requirements
- Software (kits include software, or it can be purchased independently)
Check Compatibility
▼
Specifications
- Part Number:400-1007
- Focus Type:Fixed
- Zoom Level:Stage 1 or 2* Zoom Only *Stage 2 Zoom by request
- Brightness Control:On Cord

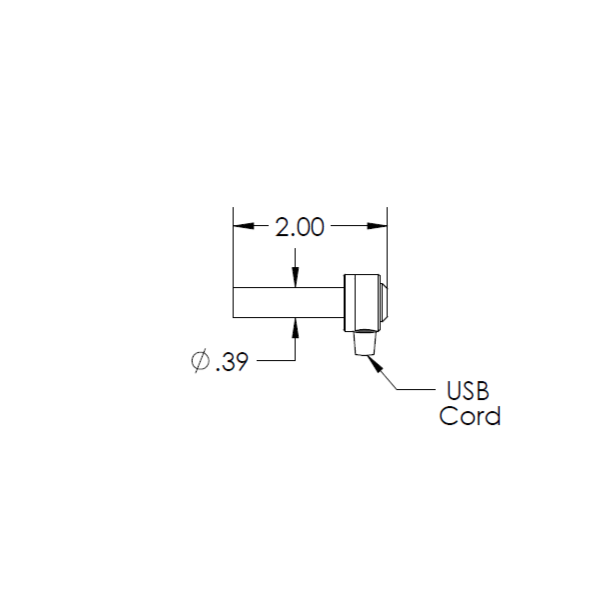

- Diameter:10mm (.394")
- Stock Type:Metric
- Clamping Zone:10mm diameter X 38mm long
See It In Action
Trusted by Machine Shops Worldwide
See why precision manufacturers rely on Perfect Zero for their CNC alignment needs.
Read Customer Testimonials →Compatible CNC Machines (90)
Citizen (16 models)
▼
A12
A16
A20
A32
B12
C16
C20
C32
L12
L20
L25
L32
M12
M16
M20
M32
Eurotech (7 models)
▼
BMX45 Y2
SLY-32
SLY-42
SLY-X12
SLY-X20
SLY-X25
SY2-X42
Hanwha (18 models)
▼
STL32
STL38
STL42
XD10
XD16
XD20
XD26
XD32
XD38
XD42
XE20
XE26
XE35
XP12
XP16
XP20
XP26
XP32
Star (13 models)
▼
SB16
SB20
SB25
SB32
SR10
SR20
SR32
SR38
ST20
ST38
SV20
SV32
SX38
Tornos (6 models)
▼
Swiss Deco G
Swiss Deco T
Swiss Deco TB
Swiss DT
Swiss GT
Swiss XT
Tsugami (20 models)
▼
B0125
B0126
B0205
B0206
B0325
B0326
B038
B0386
BW129
BW209
BW329
S205
S206
S207
SS20
SS207
SS26
SS32
SS327
SS38
Other (10 machines)
▼
DMG MORI Sprint Series
Ganesh Cyclone Series
Index Traub TNL Series
KSI Swiss
Maier
Manurhin KMX
Mazak Swiss
Nexturn
Nomura DS
Swistek AB42
This product is verified to work with the machines listed above. For machines not listed, please contact us to verify compatibility.
