.500" Diameter Universal Alignment Camera
Part Number 400-1005
$1,380
Typically ships within 5 business days
Spindle:
Fit:
Extended Knob:
Product Description

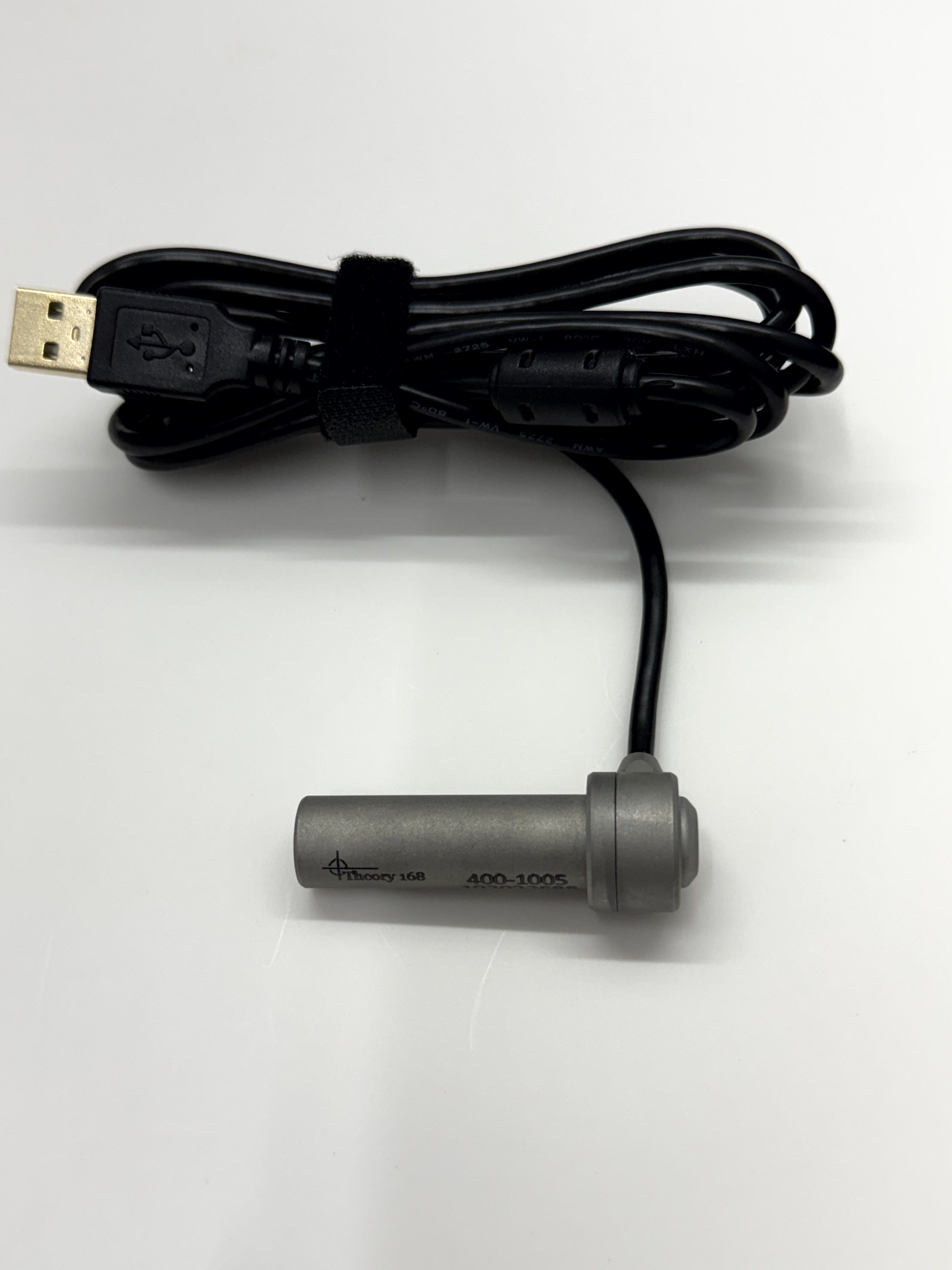

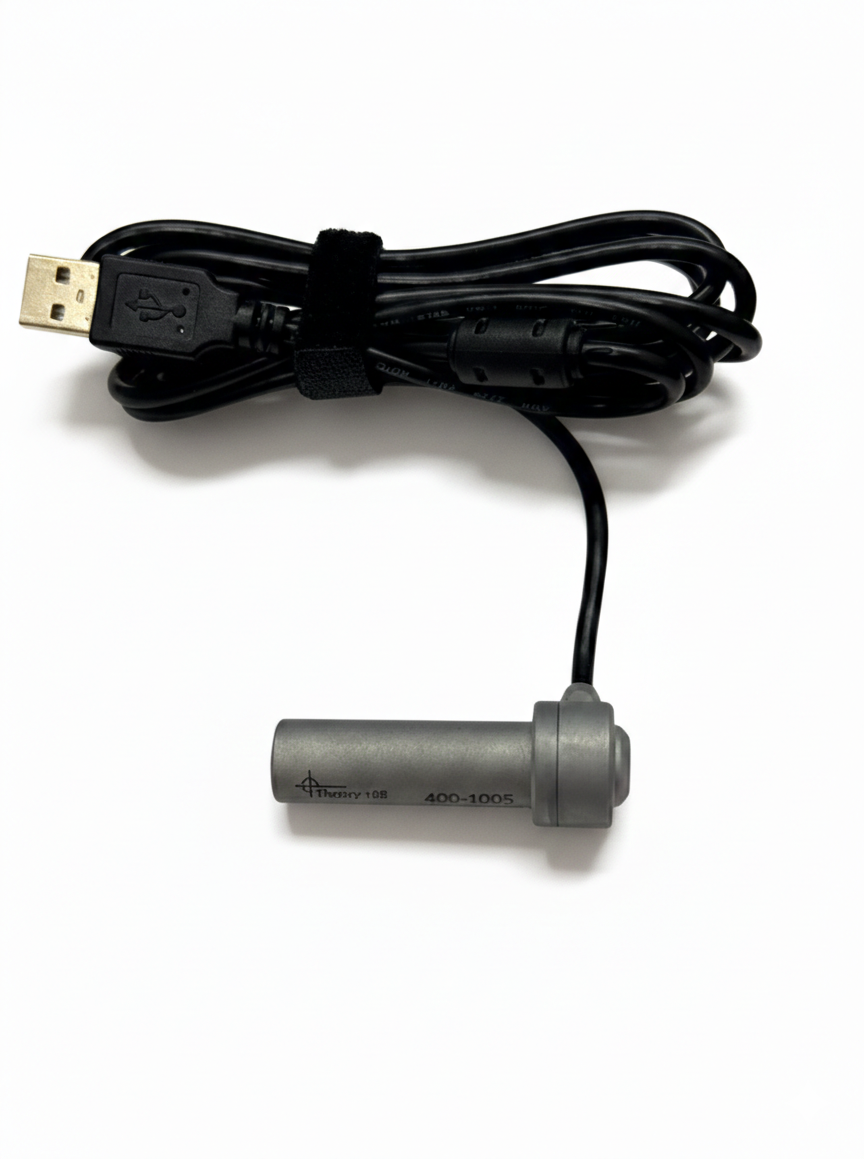

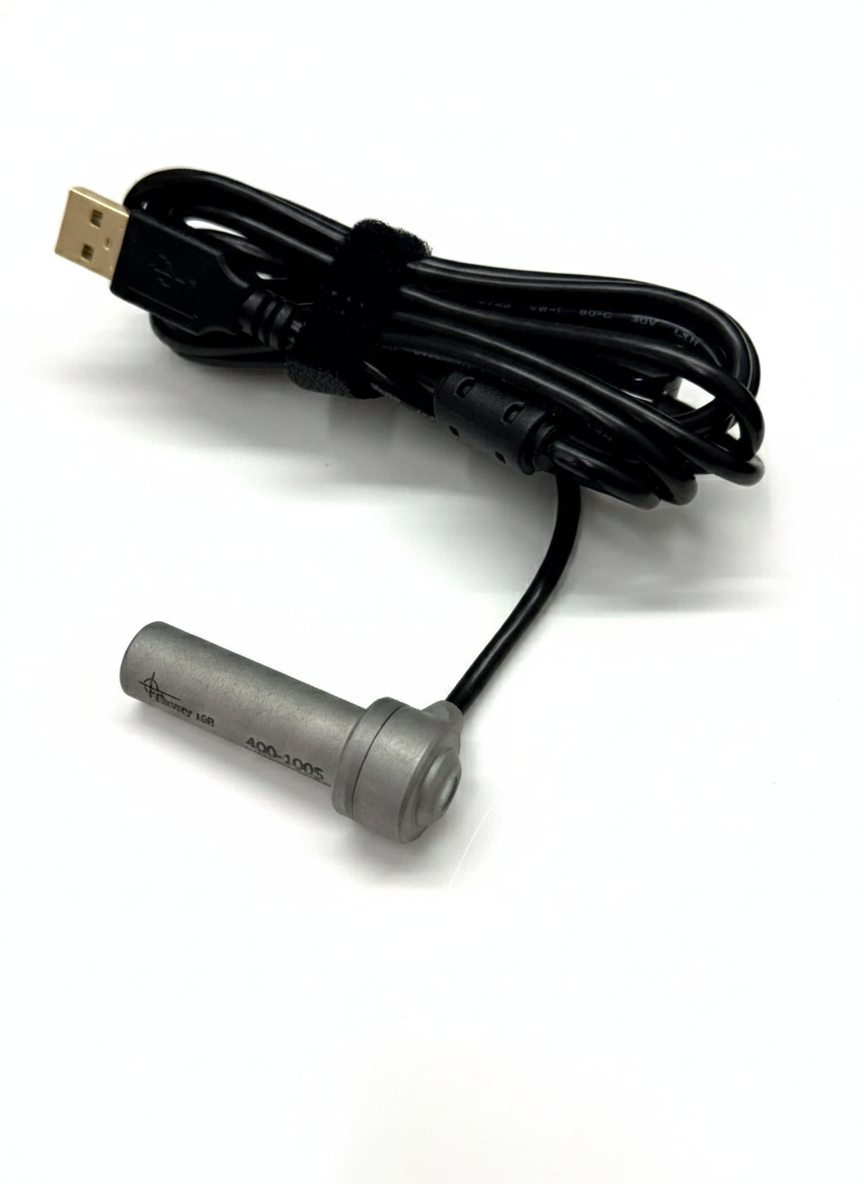

A universal alignment camera that clamps onto .500" or larger diameters in applications where threading a cord through the spindle is not possible. This compact .500" camera features a 90-degree cord design ideal for sub-spindles, milling operations, and back-working tools. With its fixed focus and optional Stage 2 zoom, this camera provides reliable alignment in challenging mounting scenarios.
What's Included
- .500" diameter camera body
- Fixed focus optics
- 90-degree cord orientation
- Stage 1 zoom (Stage 2 available by request)
- On-cord brightness control
- USB connection cable
Why Choose This Product
- Ideal for sub-spindles and milling operations
- Works where spindle cord threading is impossible
- 90-degree cord prevents interference
- Clamps on .500" and larger diameters
- Align cross-drilling and back-working tools
- Note: Use clamping sleeve for hydraulic chuck applications
Requirements
- Software (kits include software, or it can be purchased independently)
Check Compatibility
▼
Specifications
- Part Number:400-1005
- Focus Type:Fixed
- Zoom Level:Stage 1 or 2* Zoom Only *Stage 2 Zoom by request
- Brightness Control:On Cord

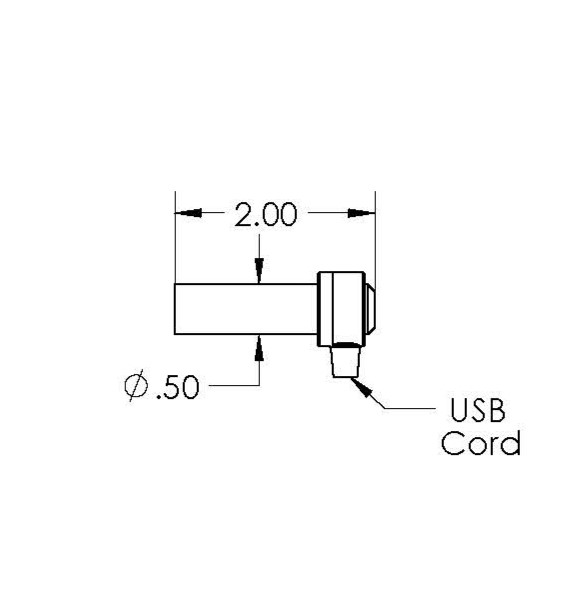

- Diameter:.500" (12.7mm)
- Length:2.0" (50.8mm)
- Stock Type:Inch or Metric
- Clamping Zone:.500" diameter X 1.5" long (12.7mm diameter X 38mm long)
See It In Action
Trusted by Machine Shops Worldwide
See why precision manufacturers rely on Perfect Zero for their CNC alignment needs.
Read Customer Testimonials →Compatible CNC Machines (86)
Citizen (14 models)
▼
A16
A20
A32
C16
C20
C32
L12
L20
L25
L32
M12
M16
M20
M32
Eurotech (7 models)
▼
BMX45 Y2
SLY-32
SLY-42
SLY-X12
SLY-X20
SLY-X25
SY2-X42
Hanwha (17 models)
▼
STL32
STL38
STL42
XD16
XD20
XD26
XD32
XD38
XD42
XE20
XE26
XE35
XP12
XP16
XP20
XP26
XP32
Star (12 models)
▼
SB16
SB20
SB25
SB32
SR20
SR32
SR38
ST20
ST38
SV20
SV32
SX38
Tornos (6 models)
▼
Swiss Deco G
Swiss Deco T
Swiss Deco TB
Swiss DT
Swiss GT
Swiss XT
Tsugami (20 models)
▼
B0125
B0126
B0205
B0206
B0325
B0326
B038
B0386
BW129
BW209
BW329
S205
S206
S207
SS20
SS207
SS26
SS32
SS327
SS38
Other (10 machines)
▼
DMG MORI Sprint Series
Ganesh Cyclone Series
Index Traub TNL Series
KSI Swiss
Maier
Manurhin KMX
Mazak Swiss
Nexturn
Nomura DS
Swistek AB42
This product is verified to work with the machines listed above. For machines not listed, please contact us to verify compatibility.
