.500" Diameter Swiss Main Alignment Camera With Extended Knob
Part Number 400-1001
Typically ships within 5 business days
Spindle:
Fit:
Extended Knob:
Product Description
A Swiss guide bushing camera designed for 32mm and larger machines with long reach or massive guide bushing assemblies. This .500" diameter camera features an extended focus knob for easy adjustment in hard-to-reach applications, providing precision visual alignment when standard cameras are difficult to operate. Perfect for large Swiss-type lathes where operator access is limited.
What's Included
Additional requirements apply. See Requirements below.
- .500" diameter camera body
- Extended focus knob for easier reach
- Manual focus adjustment (~.800" range)
- On-cord brightness control
- USB connection cable
Why Choose This Product
- Easier focus adjustment in deep or hard-to-reach guide bushing assemblies
- Ideal for larger machines with extended spindle reach
- Align tools with precision in challenging setups
- Determine bearing quality in large machines
- Fits 32mm and larger Swiss machines
- Reduces operator strain during adjustments
Requirements
- Software (kits include software, or it can be purchased independently)
Check Compatibility
Specifications
- Part Number:400-1001
- Focus Type:Manual
- Zoom Level:25X optical magnification
- Brightness Control:On Cord

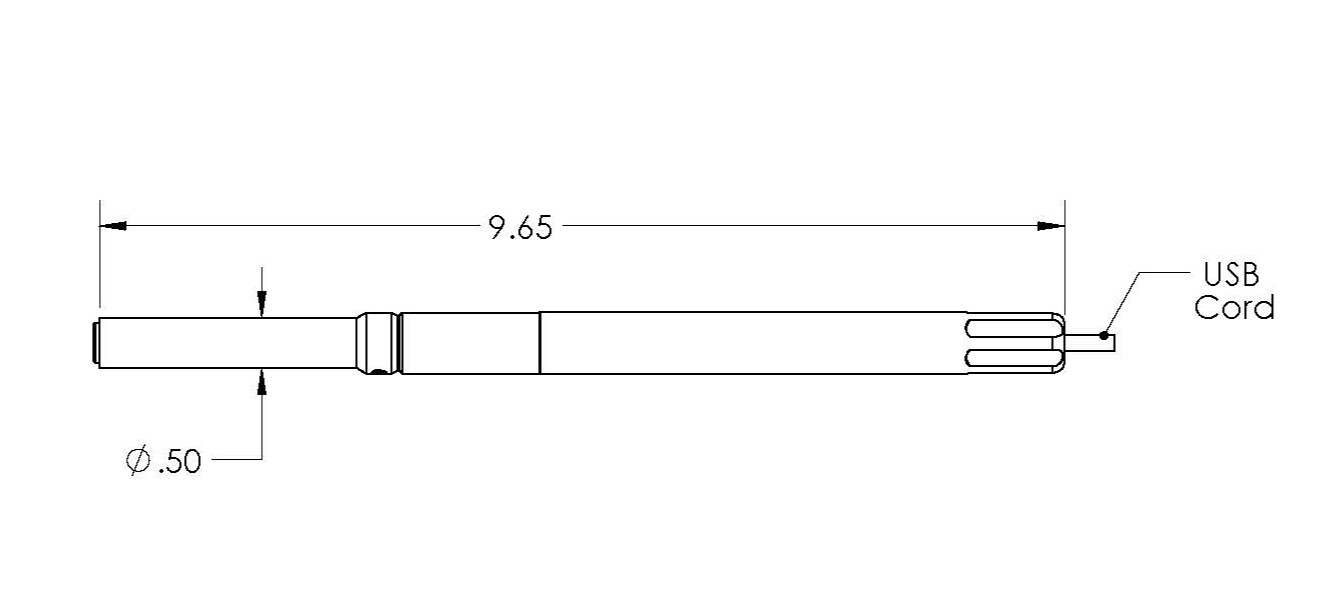

- Diameter:.500" (12.7mm)
- Length:9.6" (243mm)
- Focus Adjustment:.800" (20.3mm)
- Stock Type:Inch
- Clamping Zone:.500" diameter X 2.500" long (12.7mm diameter X 63.5mm long)
