Citizen R04 (PD4) Main Spindle Camera

Part Number 400-1050

$2,000

Spindle:

Fit:

Extended Knob:

Product Description

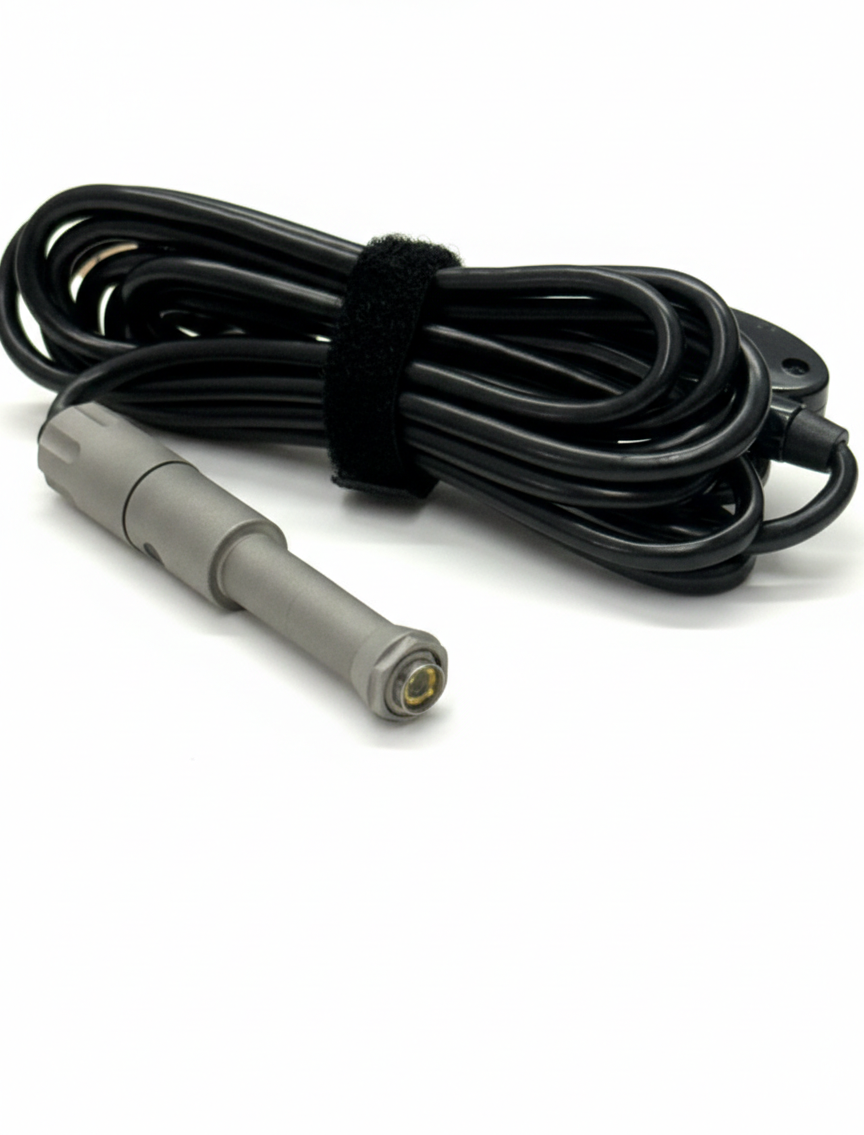

A purpose-built camera machined to the exact shape of a PD4 guide bushing, designed specifically to replace the guide bushing on Citizen R04 Swiss machines. This specialized camera provides precision tool alignment and bearing inspection for one of the smallest Swiss machines on the market, featuring manual focus adjustment and optional Stage 2 zoom for the finest detail work. Perfect for Citizen R04 owners who need reliable alignment on ultra-compact tooling.

What's Included

PD4-shaped camera body
Manual focus adjustment (~10mm range)
Stage 1 zoom (Stage 2 available by request)
On-cord brightness control
USB connection cable

Why Choose This Product

Purpose-built for Citizen R04 machines
Direct replacement for PD4 guide bushing
Align tools in the smallest Swiss machines
Check bearing quality and spindle condition
Optional Stage 2 zoom for micro-tool inspections
Engineered specifically for R04 specifications

Requirements

Software (kits include software, or it can be purchased independently)

Check Compatibility

Specifications

Part Number:400-1050
Focus Type:Manual
Zoom Level:Stage 1 or 2* Zoom Only *Stage 2 Zoom by request
Brightness Control:On Cord
Diameter:PD4-shaped
Length:5.8mm
Focus Adjustment:Approximately 10mm
Stock Type:Inch or Metric
Clamping Zone:PD4-shaped guide bushing replacement

Trusted by Machine Shops Worldwide

See why precision manufacturers rely on Perfect Zero for their CNC alignment needs.

Read Customer Testimonials →

Compatible CNC Machines (1)

Citizen R04

This product is verified to work with the machines listed above. For machines not listed, please contact us to verify compatibility.
