Tool Inspector
Banner Image
Look at tools without having to take them out of the machine
It is so much easier to know if your cutting edge is worn out to look at it close-up. This camera and our special software combination are perfect for this. Simply hold the handheld camera over the tool edge and take an image. Notes can be added, and they will always be saved for future reference. This is another way that Theory 168 provides task completion validation.
®
Perfect Zero
The Perfect Zero Visual Alignment System has sizes for every CNC mill, lathe, grinder, laser, and anything CNC. This product was specifically designed for aligning tools on the guide bushing side of the machine, and can be installed in many different configurations to fit any machine.
How It Works
The Perfect Zero visual alignment system is a complete turn-key solution for any machine, perfectly and rapidly centering your tools.
Perfect Zero software and cameras will center your tools on both the guide bushing and sub spindle side of any machine. Center micro drills as small as .002in as well as OD tools, including threading tools, turning tools, and Y-Axis tools.
The non-contact optics of the sub spindle and guide bushing cameras eliminate alignment errors with no measuring gauges needed.

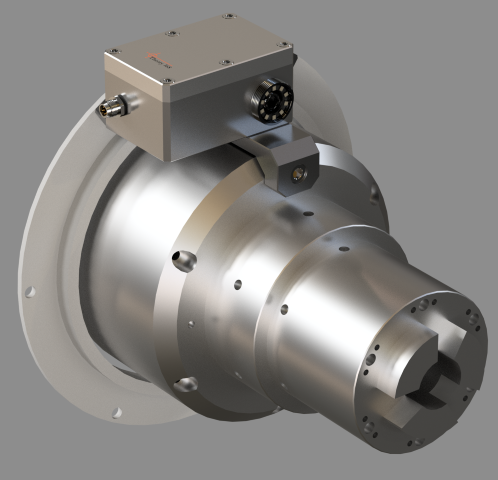

Install your Perfect Zero camera in your CNC swiss machine.
Use Perfect Zero software to start centering your tools.
Operate your CNC machine with perfectly align tools.
Software Types
_edited.png)
Perfect Zero local software
Perfect Zero web application
Web Application
Features | Local | Lite | Advanced |
|---|---|---|---|
Hardware | Licensed laptops only | Any computer | Any computer |
Data Storage | Local | Cloud | Cloud |
1080p HD Video | |||
Seamless Updates | |||
Manual Calibration | |||
Auto Calibration | |||
User Management | |||
Machine Management | |||
Alignment History | |||
Zoom | 150x | 500x | |
Rotation | |||
Circle Fit Score |
Testimonials
The Perfect Zero is an excellent tool that has paid for itself over and over with increased tool life and improved production.
- Esterline & Sons Mfg
The guys rely on Perfect Zero 100%, makes me wonder how we functioned without it.
- MedFab
If it wasn’t for Perfect Zero, we would have to turn down projects!
- Biomerics
Pick Your Machine
Other Machines
Camera Options
Camera options we offer:
-
400-1200: 12.7mm (.500) Swiss Main Alignment Camera
-
400-1201: 12.7 mm(.500) Swiss Sub/Universal Alignment Camera
-
400-1202: 12.7mm (.500) Swiss Main Alignment Camera With Extended Knob
-
400-1203: 12mm (.472) Swiss Main Alignment Camera
-
400-1204: 12mm (.472) Swiss Sub/Universal Alignment Camera
-
400-1221: SD125R Non Rotary Guide Bushing Alignment Camera
-
400-1222: SD125R Guide Bushing Alignment Camera
-
400-1224: Citizen B12 TF16 Sub Collet Alignment Camera
-
400-1230: TD7 Guide Bushing Alignment Camera
-
400-1240: Star TD10 Guide Bushing Alignment Camera
-
400-1241: Star SR10 TF15 Sub Collet Alignment Camera
-
400-1250: Tornos TF10 Sub Collet Alignment Camera
-
400-1251: Tornos TD10 Guide Bushing Alignment Camera
Each kit includes:
-
Preferred Camera
-
Laptop Computer Loaded with Perfect Zero Software
-
Portable Service/Computer Cart
-
.25, .375, .5, .625, .75 Visual Targets
-
Camera and Components Case
