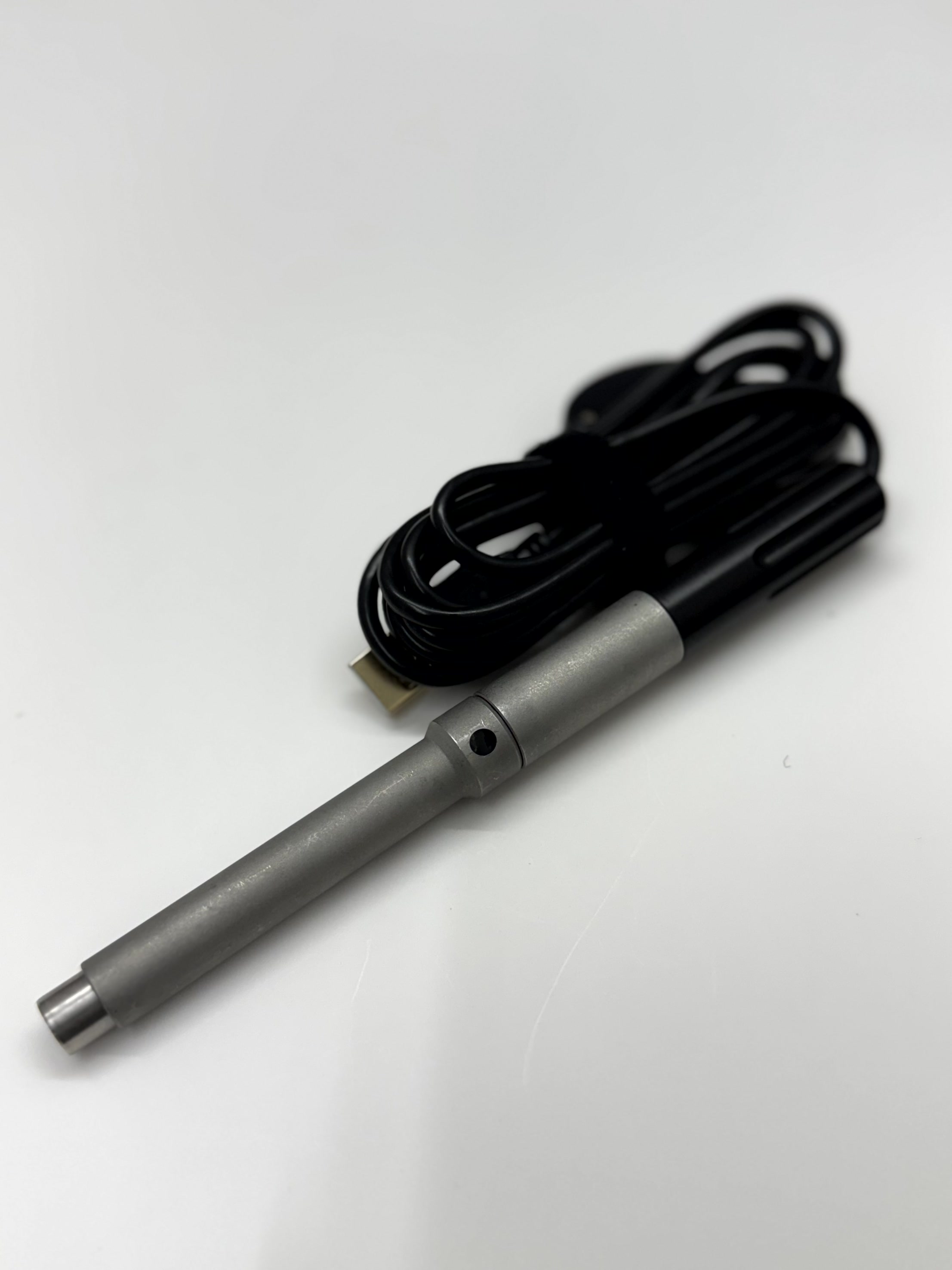

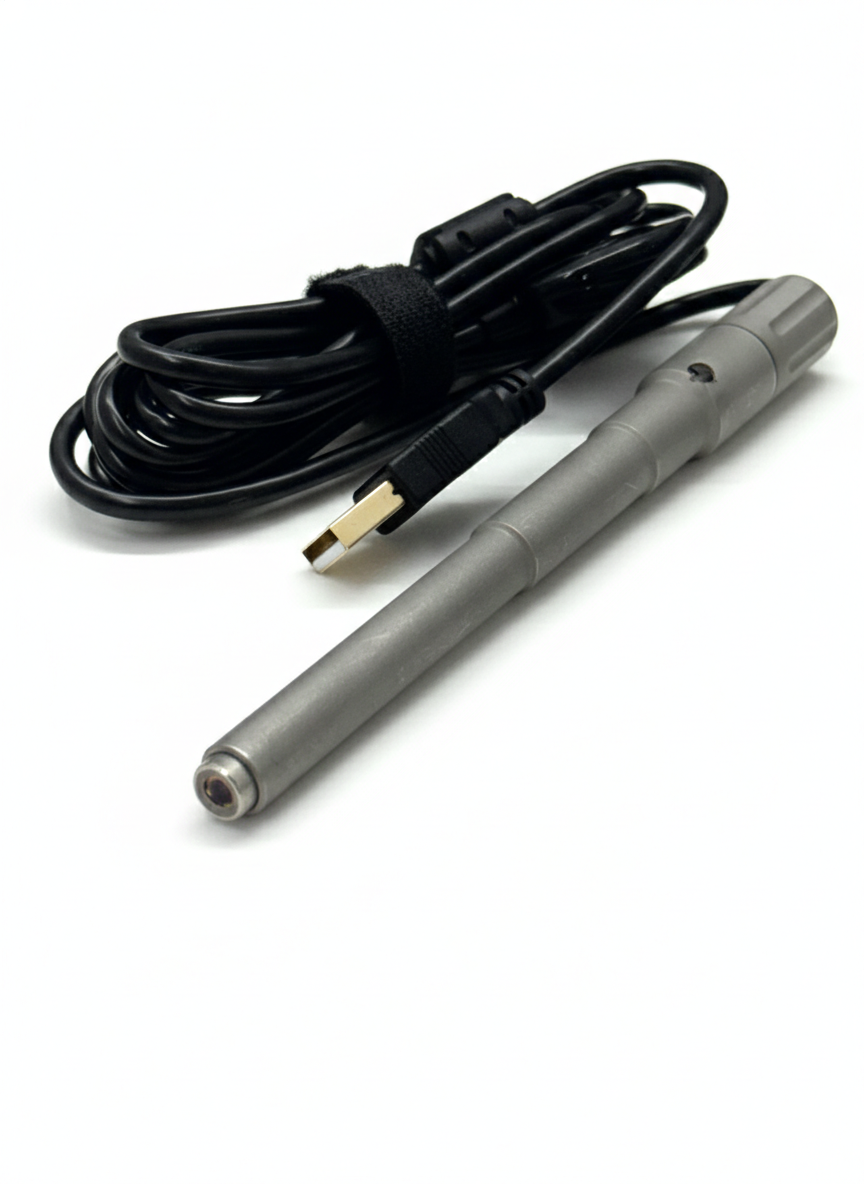

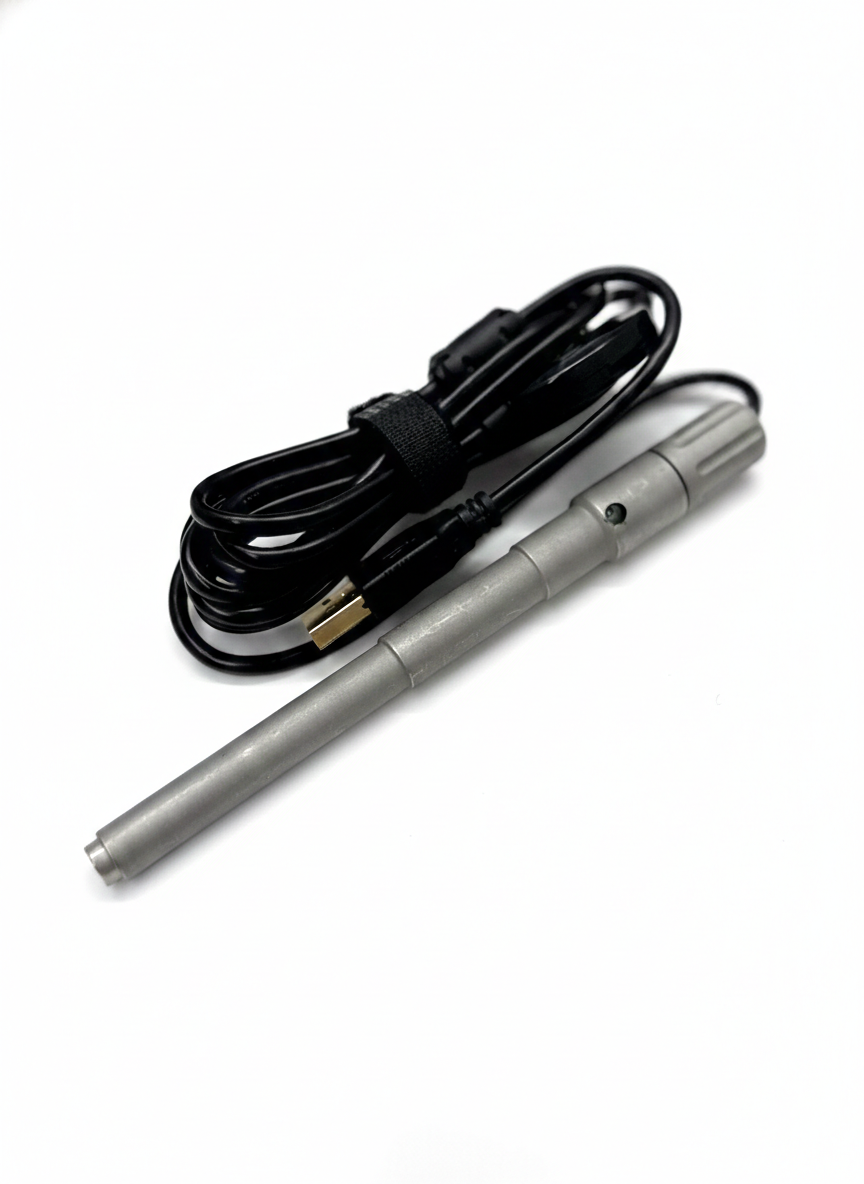

12mm (.472") Swiss Main Alignment Camera with Extended Knob
Part Number 400-1003
$1,700
Product Description
Swiss Guide bushing camera to fit 32mm and larger machines.
Key Features
- Best used in larger machines with a long reach or massive Guide Bushing Assembly

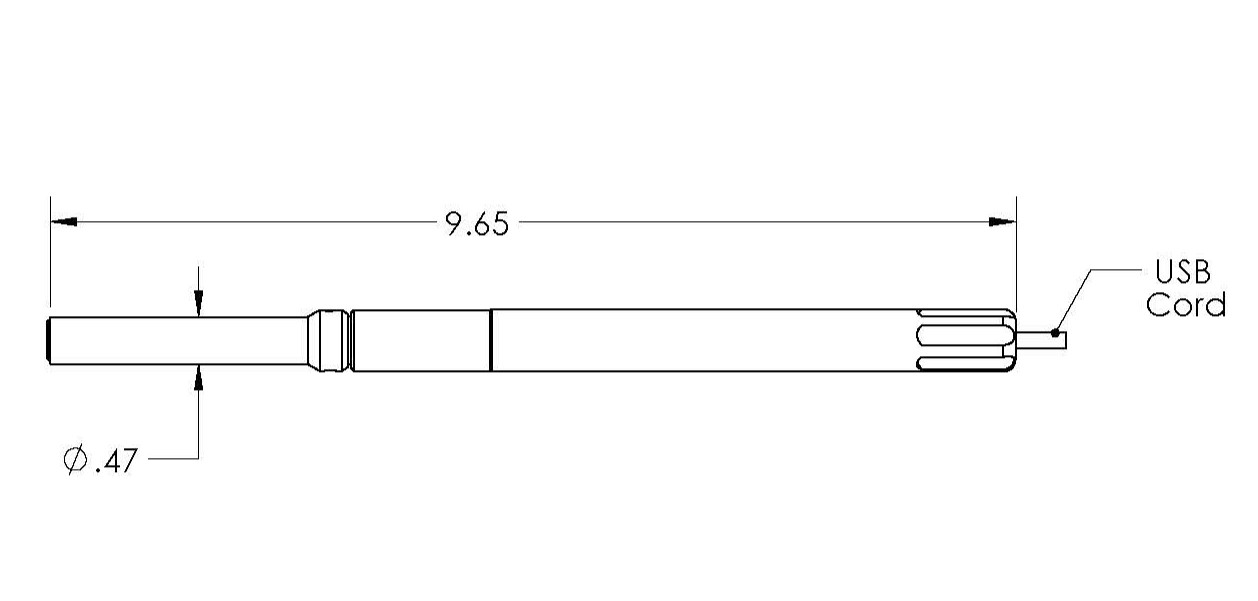

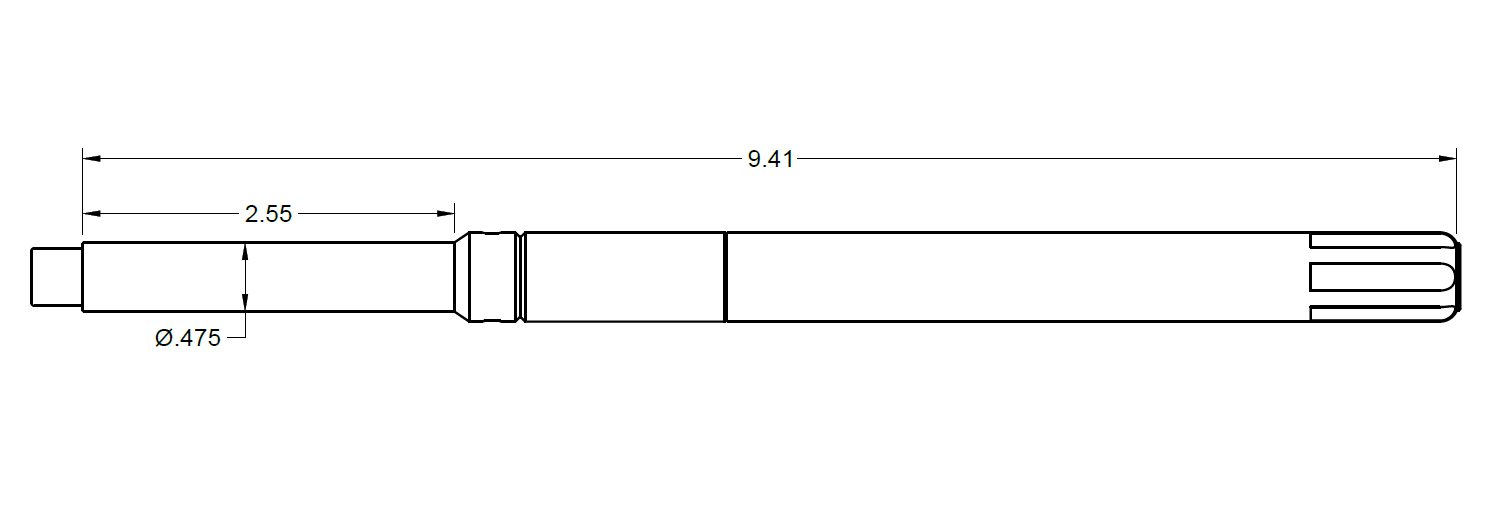

- 12mm Main body diameter
- 243mm Over All Length
- Extended focus knob
- Approximately 200mm of Focus adjustment
- Clamping zone: 12mm diameter X 63.5mm long
Check Compatibility
▼
Specifications
- Part Number:400-1003
- Connection:USB-A
- Compatibility:Windows 10/11
- Application:CNC Alignment
- Focus Type:Manual
- Zoom Level:Stage 1
- Brightness Control:On Cord
- Bar Stock Diameter:12mm (.472")
- Spindle Type:Swiss Main Spindle
Compatible CNC Machines (78)
>
Citizen (12 models)
▼
A20
A32
C16
C20
C32
L12
L20
L25
L32
M16
M20
M32
>
Eurotech (7 models)
▼
BMX45 Y2
SLY-32
SLY-42
SLY-X12
SLY-X20
SLY-X25
SY2-X42
>
Hanwha (15 models)
▼
STL32
STL38
STL42
XD16
XD20
XD26
XD32
XD38
XD42
XE20
XE26
XE35
XP20
XP26
XP32
>
Star (11 models)
▼
SB20
SB25
SB32
SR20
SR32
SR38
ST20
ST38
SV20
SV32
SX38
>
Tornos (6 models)
▼
Swiss Deco G
Swiss Deco T
Swiss Deco TB
Swiss DT
Swiss GT
Swiss XT
>
Tsugami (17 models)
▼
B0205
B0206
B0325
B0326
B038
B0386
BW209
BW329
S205
S206
S207
SS20
SS207
SS26
SS32
SS327
SS38
>
Other (10 machines)
▼
DMG MORI Sprint Series
Ganesh Cyclone Series
Index Traub TNL Series
KSI Swiss
Maier
Manurhin KMX
Mazak Swiss
Nexturn
Nomura DS
Swistek AB42
This product is verified to work with the machines listed above. For machines not listed, please contact us to verify compatibility.
