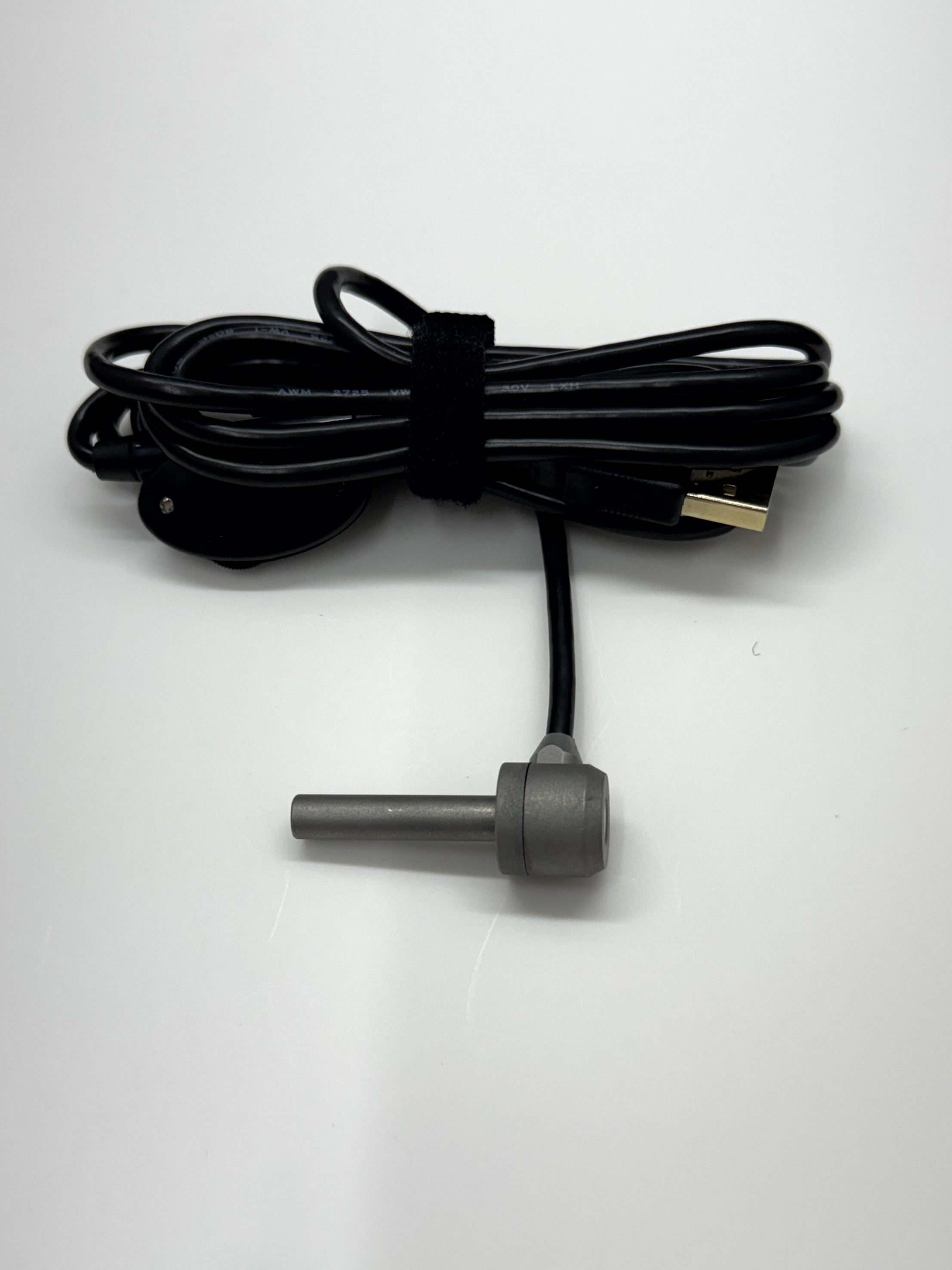

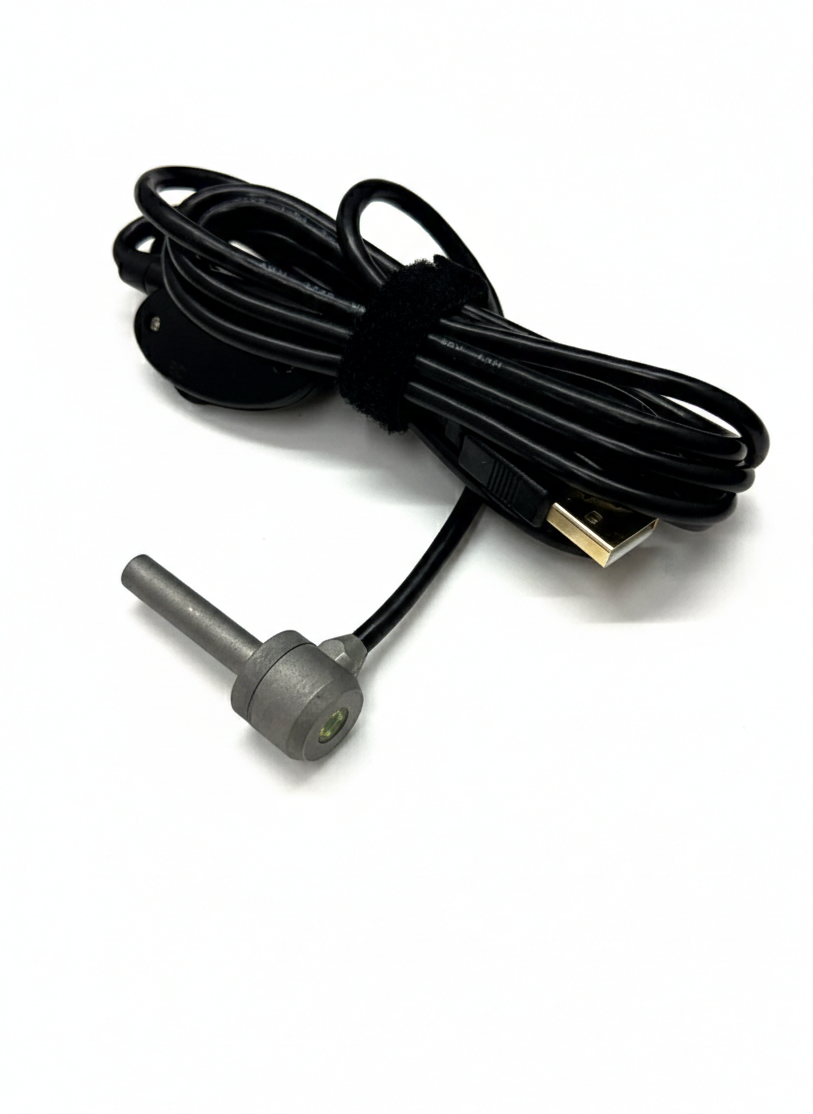

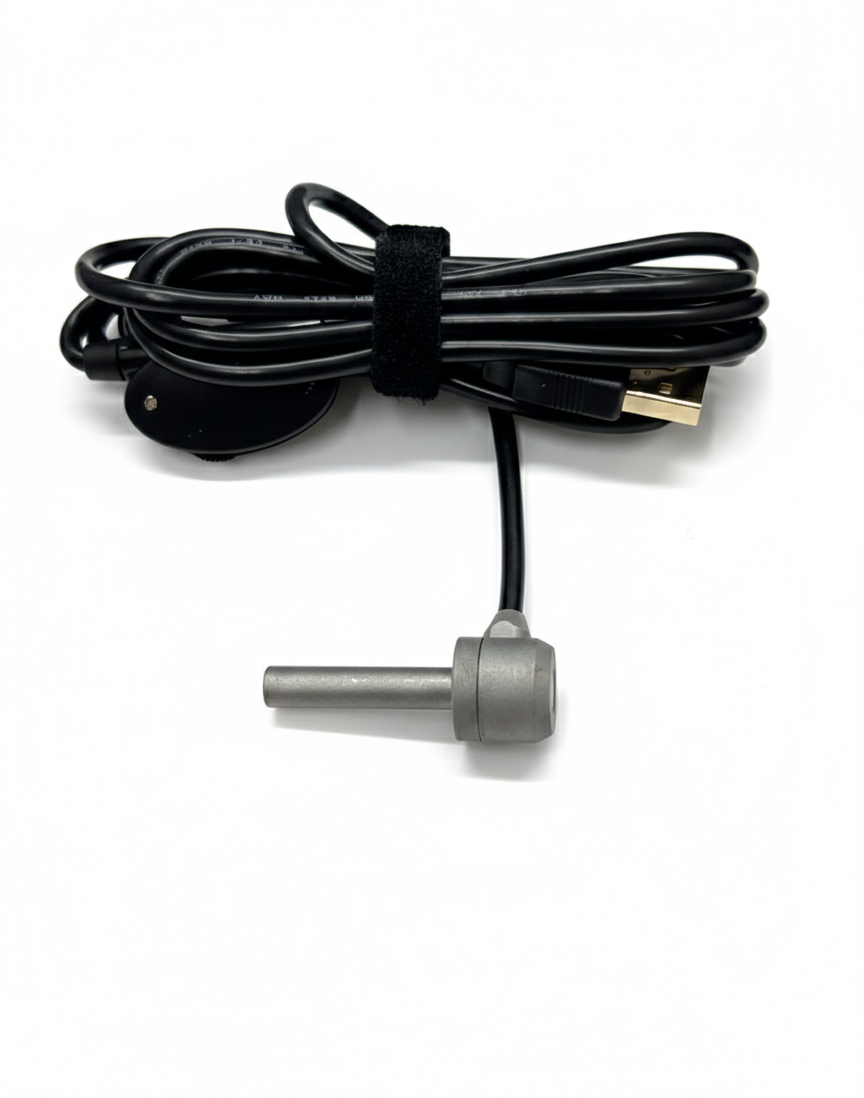

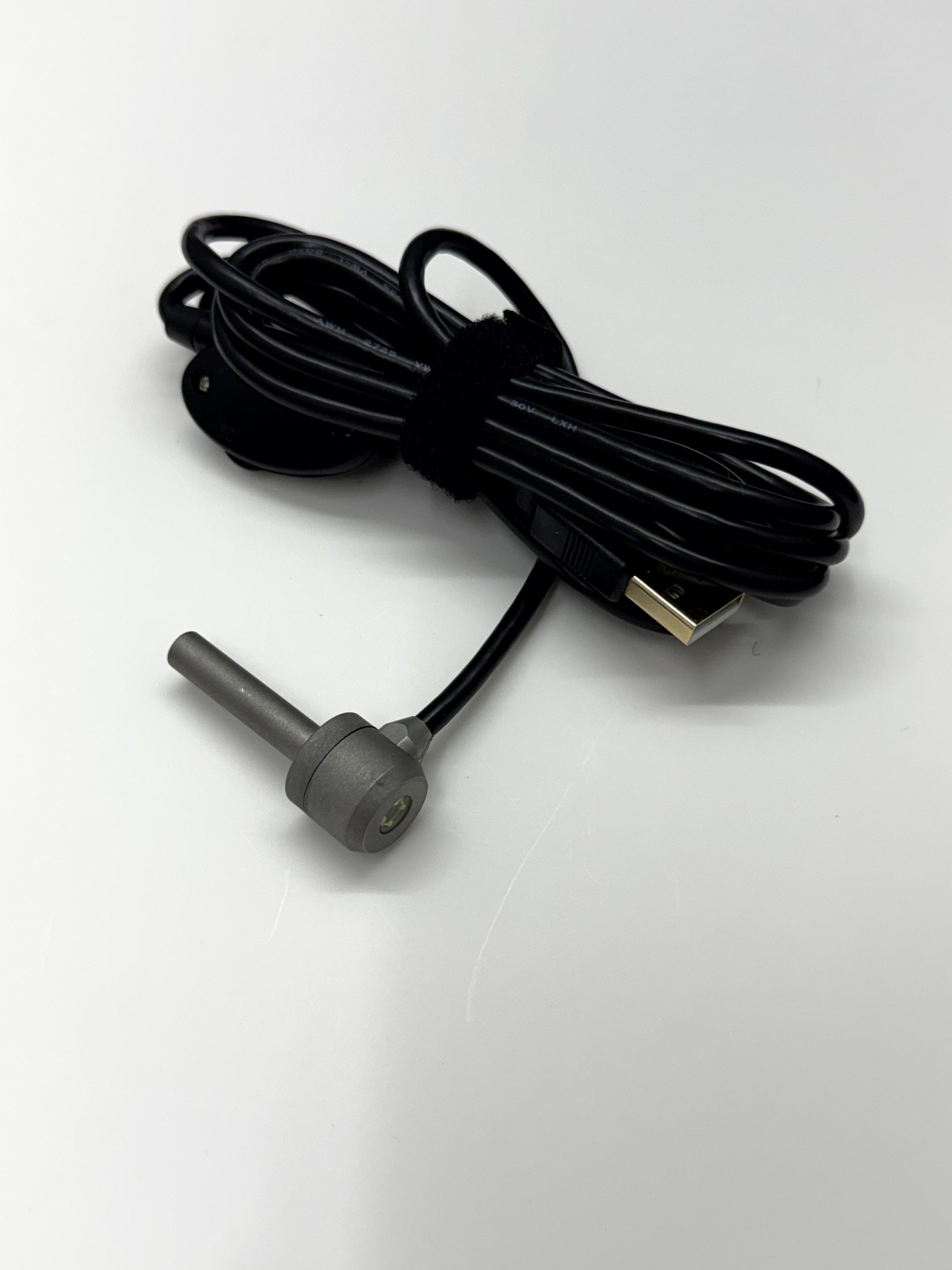

.250" (6.4mm) Universal Alignment Camera
Part Number 400-1008
$1,680
Spindle:
Fit:
Extended Knob:
Product Description
The smallest universal alignment camera, designed for ultra-compact machinery that clamps onto 6.4mm (.250") or larger diameters. This micro-sized camera is perfect for the smallest Swiss machines and precision micro-milling applications where space is extremely limited. With a 90-degree cord design and optional Stage 2 zoom, it delivers precision alignment capability in the most confined spaces.
What's Included
- .250" (6.4mm) diameter camera body
- Fixed focus optics
- 90-degree cord orientation
- Stage 1 zoom (Stage 2 available by request)
- On-cord brightness control
- USB connection cable
Why Choose This Product
- Ultra-compact size for micro-Swiss machines
- Smallest available camera for tightest spaces
- Ideal for micro-milling and tiny sub-spindles
- 90-degree cord for minimal interference
- Clamps on 6.4mm and larger diameters
- Note: Use clamping sleeve for hydraulic chuck applications
Requirements
- Software (kits include software, or it can be purchased independently)
Check Compatibility
▼
Specifications
- Part Number:400-1008
- Focus Type:Fixed
- Zoom Level:Stage 1 or 2* Zoom Only *Stage 2 Zoom by request
- Brightness Control:On Cord
- Diameter:.250" (6.4mm)
- Stock Type:Inch or Metric
- Clamping Zone:.250" diameter X 38mm long
Trusted by Machine Shops Worldwide
See why precision manufacturers rely on Perfect Zero for their CNC alignment needs.
Read Customer Testimonials →Compatible CNC Machines (2)
Citizen (2 models)
▼
R04
R07
This product is verified to work with the machines listed above. For machines not listed, please contact us to verify compatibility.
