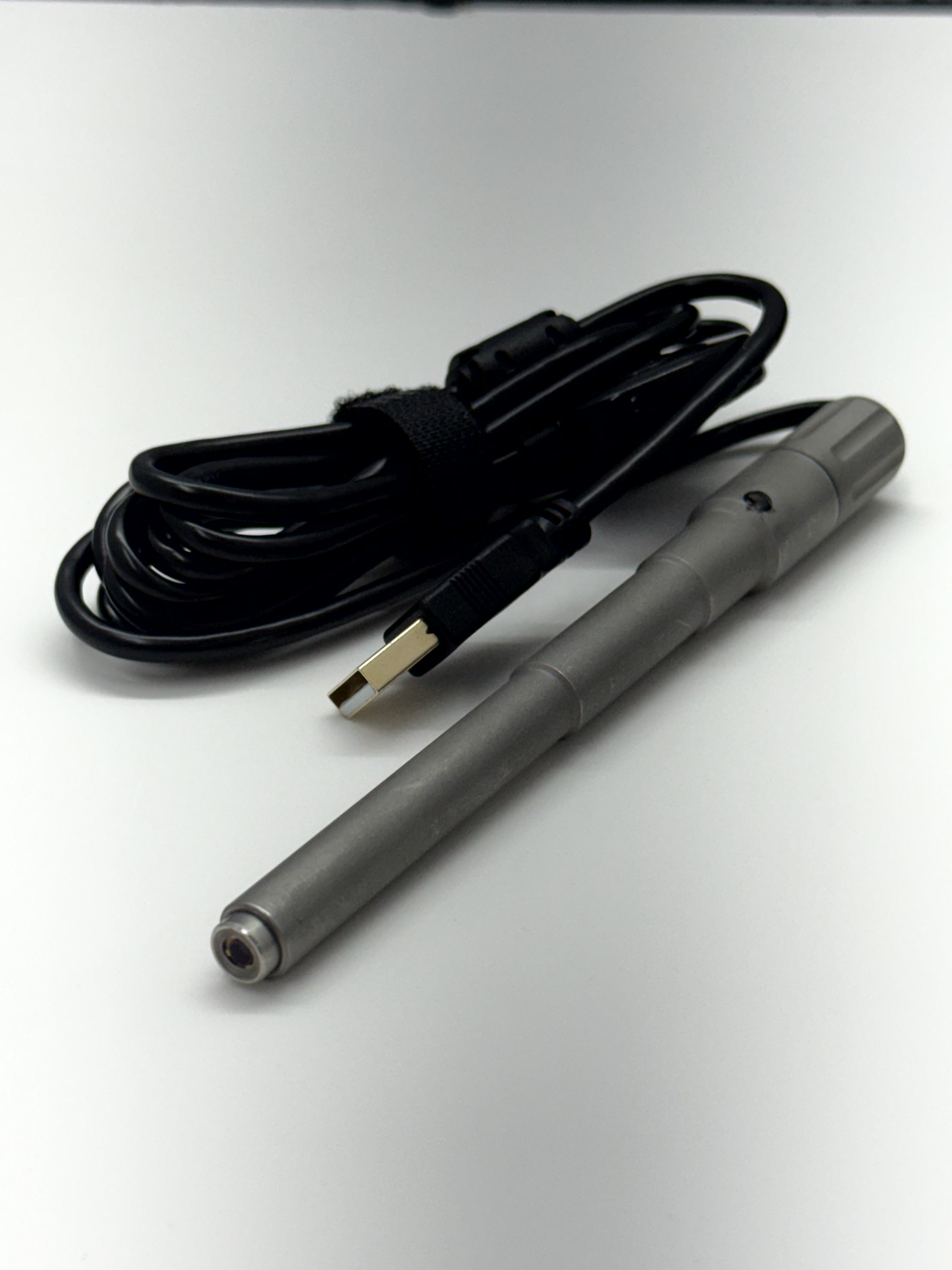

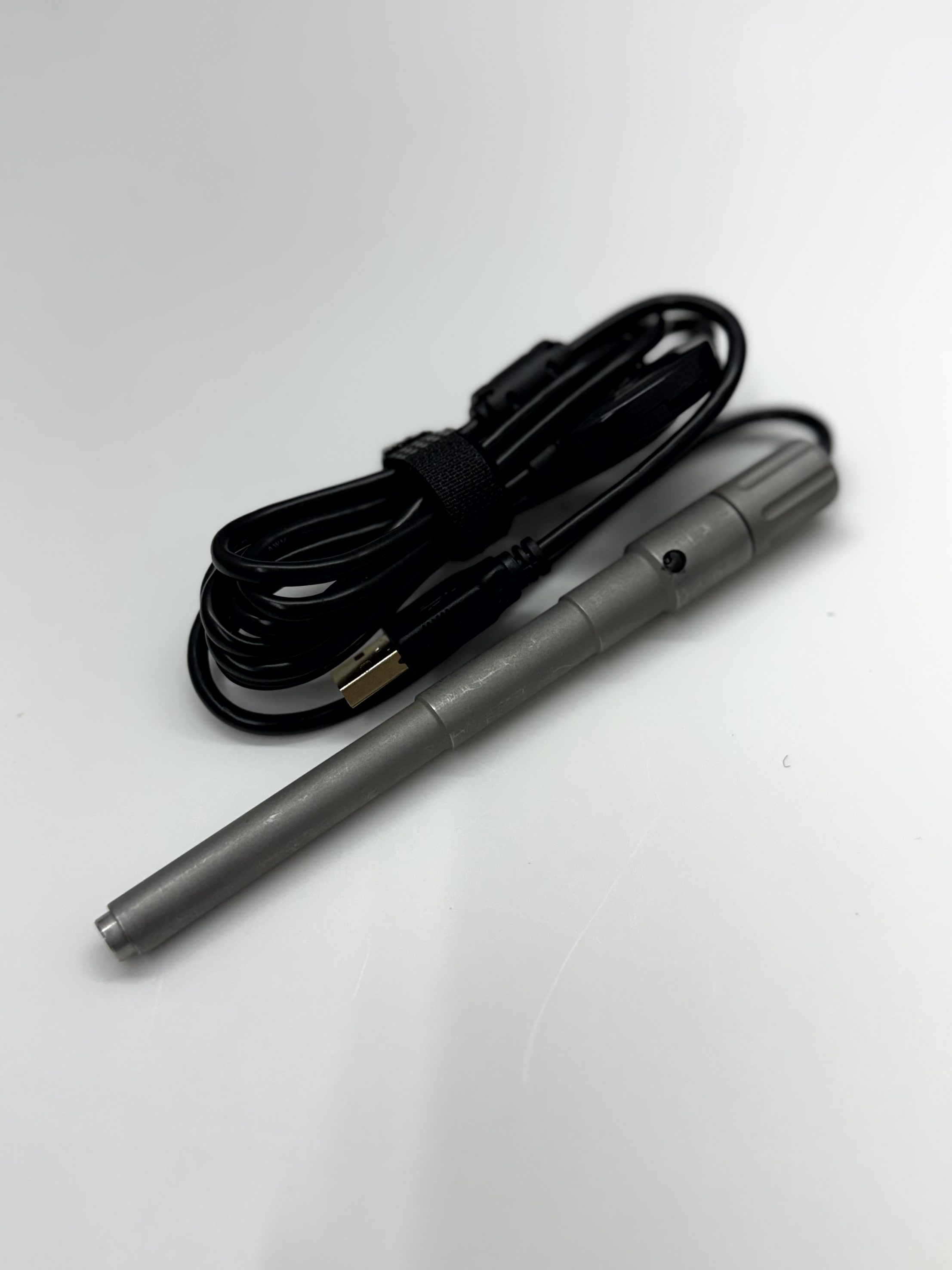

12mm (.472") Swiss Main Alignment Camera with Extended Knob
Part Number 400-1003
$1,955
Typically ships within 5 business days
Spindle:
Fit:
Extended Knob:
Product Description
A 12mm Swiss guide bushing camera designed for larger machines with long reach or massive guide bushing assemblies. This metric camera features an extended focus knob providing easy adjustment access in deep spindle configurations, with approximately 20mm of focus range. Best suited for 32mm and larger metric Swiss machines where standard focus knobs are difficult to reach.
What's Included
Additional requirements apply. See Requirements below.
- 12mm diameter camera body
- Extended focus knob for easier reach
- Manual focus adjustment (~20mm range)
- On-cord brightness control
- USB connection cable
Why Choose This Product
- Easier focus adjustment in deep guide bushing assemblies
- Ideal for larger metric machines with extended reach
- Native 12mm sizing for metric operations
- Align tools precisely in challenging setups
- Fits 32mm and larger Swiss machines
- Reduces operator strain during focus adjustments
Requirements
- Software (kits include software, or it can be purchased independently)
Check Compatibility
▼
Specifications
- Part Number:400-1003
- Focus Type:Manual
- Zoom Level:25X optical magnification
- Brightness Control:On Cord
- Diameter:12mm (.472")
- Length:9.6" (243mm)
- Focus Adjustment:20mm (.800")
- Stock Type:Metric
- Clamping Zone:12mm diameter X 63.5mm long
See It In Action
Trusted by Machine Shops Worldwide
See why precision manufacturers rely on Perfect Zero for their CNC alignment needs.
Read Customer Testimonials →Compatible CNC Machines (78)
Citizen (12 models)
▼
A20
A32
C16
C20
C32
L12
L20
L25
L32
M16
M20
M32
Eurotech (7 models)
▼
BMX45 Y2
SLY-32
SLY-42
SLY-X12
SLY-X20
SLY-X25
SY2-X42
Hanwha (15 models)
▼
STL32
STL38
STL42
XD16
XD20
XD26
XD32
XD38
XD42
XE20
XE26
XE35
XP20
XP26
XP32
Star (11 models)
▼
SB20
SB25
SB32
SR20
SR32
SR38
ST20
ST38
SV20
SV32
SX38
Tornos (6 models)
▼
Swiss Deco G
Swiss Deco T
Swiss Deco TB
Swiss DT
Swiss GT
Swiss XT
Tsugami (17 models)
▼
B0205
B0206
B0325
B0326
B038
B0386
BW209
BW329
S205
S206
S207
SS20
SS207
SS26
SS32
SS327
SS38
Other (10 machines)
▼
DMG MORI Sprint Series
Ganesh Cyclone Series
Index Traub TNL Series
KSI Swiss
Maier
Manurhin KMX
Mazak Swiss
Nexturn
Nomura DS
Swistek AB42
This product is verified to work with the machines listed above. For machines not listed, please contact us to verify compatibility.
